The recommended operating temperature range for ELANSC520-100AD is 0°C to 70°C (32°F to 158°F).
To ensure reliable operation in high-temperature environments, it is recommended to use a heat sink or thermal management system to keep the device temperature within the recommended operating range.
The maximum current rating for the ELANSC520-100AD is 1.5A per pin, with a total current rating of 3A for the entire device.
To minimize EMI, it is recommended to use a shielded enclosure, keep signal traces short, and use decoupling capacitors to filter out noise.
The recommended power-up sequence for ELANSC520-100AD is to apply power to the VCC pin first, followed by the VDD pin, and then the clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ELANSC520-100AD Overview

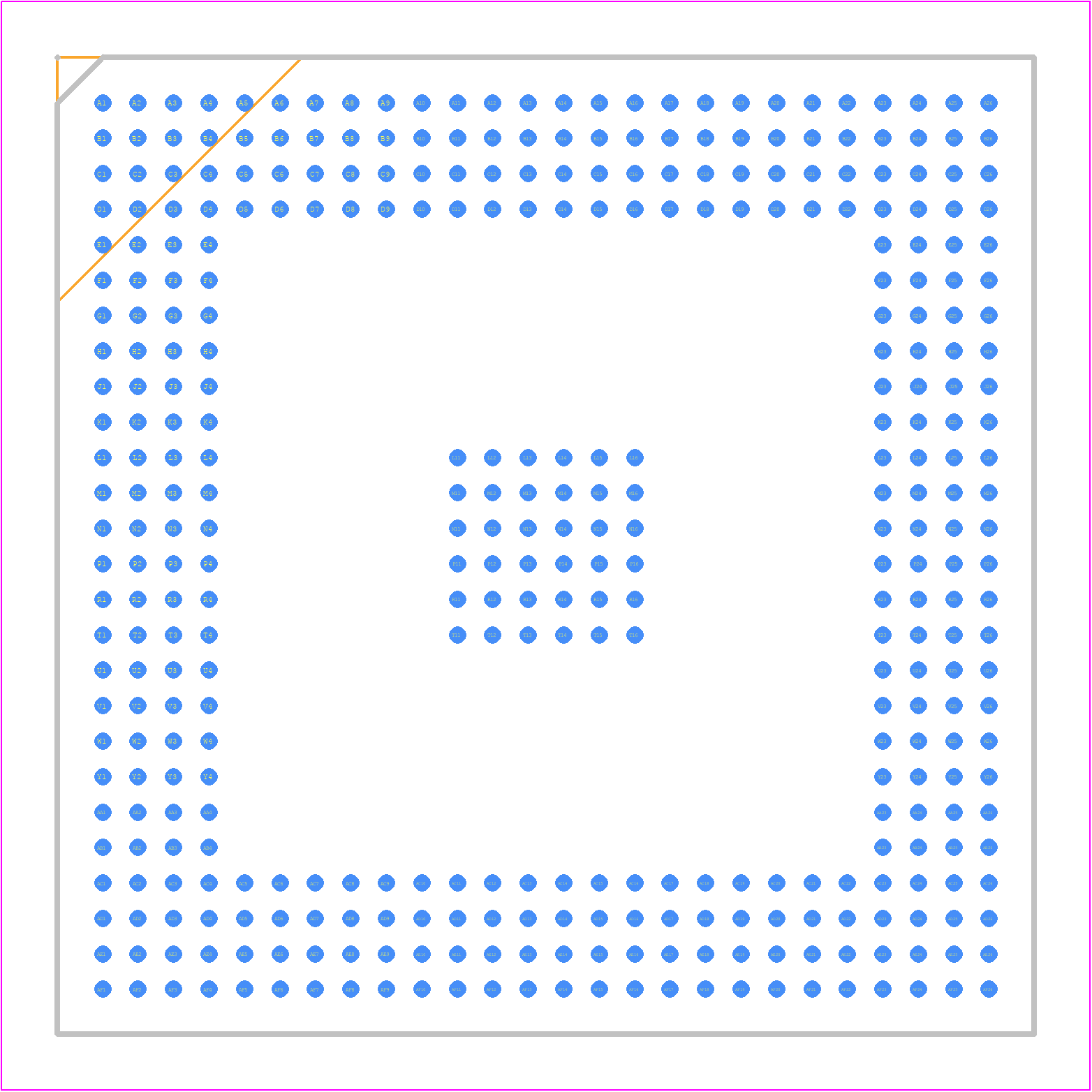

Use the download button to access the ELANSC520-100AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELANS,
or try a keyword search, such as Microcontrollers
