ELB-1001SYGWA/S530-E2 - Everlight

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 10) Diffused, White 2V 25mA Rectangle with Flat Top 5.00mm x 1.70mm Through Hole

Download ELB-1001SYGWA/S530-E2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ELB-1001SYGWA/S530-E2 model

Email notifications will be applied after download.

Send part feedback

Symbol

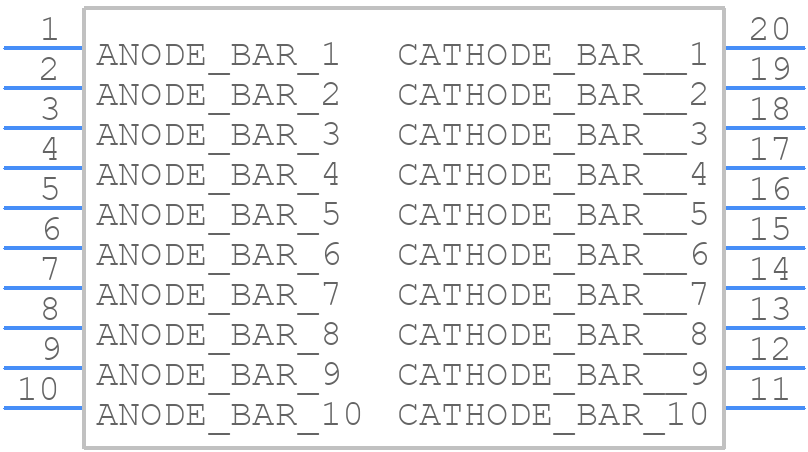

ELB-1001SYGWA/S530-E2 - Everlight - PCB symbol

PCB Footprints

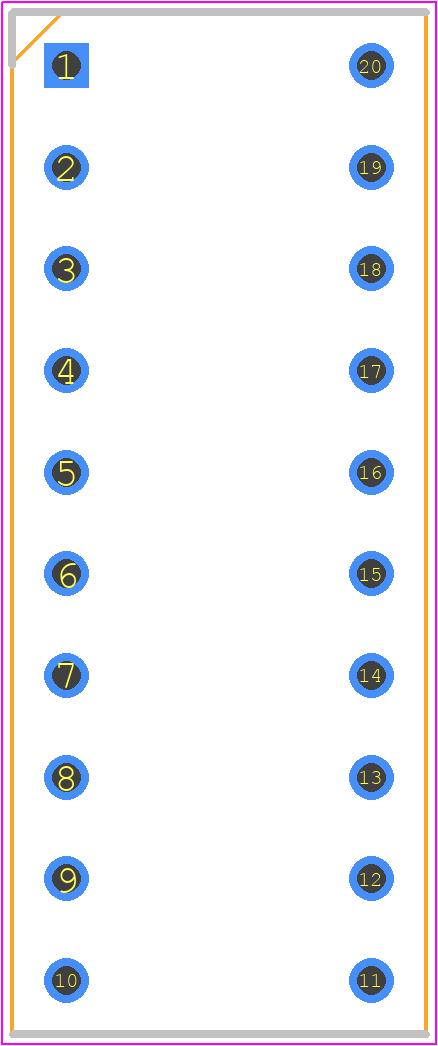

ELB-1001SYGWA/S530-E2 - Everlight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-20

Datasheet Download Datasheet
Stock & Prices Price & Stock for ELB-1001SYGWA/S530-E2
Part Number ELB-1001SYGWA/S530-E2
Manufacturer Everlight
Pin Count 20
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-20
Released Date Jan 23, 2025
Last Modified Date Jan 23, 2025 3:12 PM UTC
Pinout / Pin List Click Here (Member Only)

ELB-1001SYGWA/S530-E2 Details

Manufacturer Part Number:
ELB-1001SYGWA/S530-E2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-20
ECCN Code:
EAR99
HTS Code:
8541.40.20.00
Manufacturer:
Everlight Electronics Co Ltd
YTEOL:
6
Color:
SUPER YELLOW GREEN
Configuration:
SEPARATE, 10 ELEMENTS
Forward Current-Max:
0.025 A
Luminous Intensity-Nom:
4.5 mcd
Mounting Feature:
RADIAL MOUNT
Number of Functions:
10
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Overall Height:
8 mm
Packing Method:
BULK
Peak Wavelength:
575 nm
Shape:
RECTANGULAR
Size:
5 mm
Surface Mount:
NO
Terminal Pitch:
7.62 mm

ELB-1001SYGWA/S530-E2 Frequently Asked Questions (FAQs)

The recommended storage temperature range for ELB-1001SYGWA/S530-E2 is -40°C to 100°C.
Yes, ELB-1001SYGWA/S530-E2 is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
The moisture sensitivity level (MSL) of ELB-1001SYGWA/S530-E2 is MSL 3, which means it can be exposed to a maximum of 168 hours of humidity before soldering.
Yes, ELB-1001SYGWA/S530-E2 is suitable for outdoor applications, with a rating of IP67 for ingress protection against dust and water.
The recommended operating temperature range for ELB-1001SYGWA/S530-E2 is -40°C to 85°C.

Trust Checks

Community Provided

System Verified

Community Approved

ELB-1001SYGWA/S530-E2 Overview

Use the download button to access the ELB-1001SYGWA/S530-E2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ELB-1, or try a keyword search, such as Visible LEDs
