ELC15E103L - Panasonic

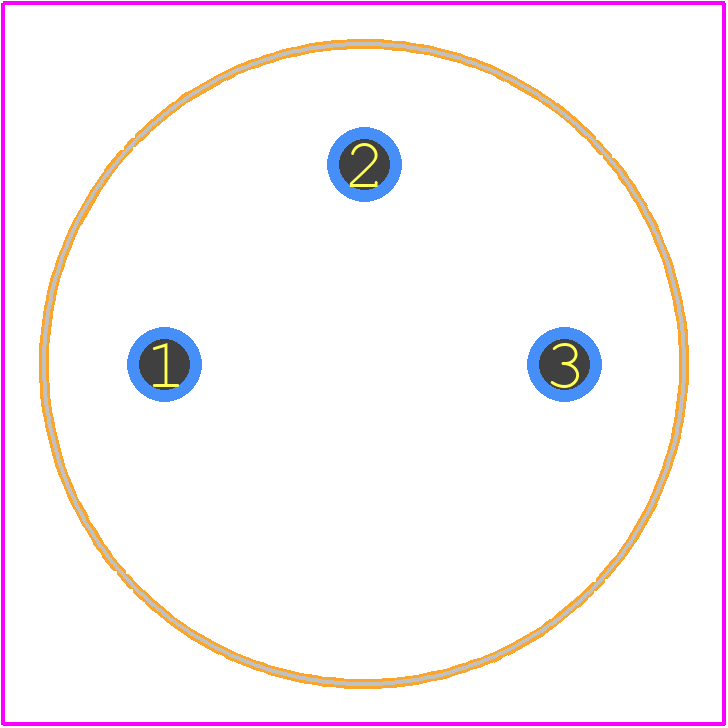

ELC15E103L Details

• Manufacturer Part Number:

  ELC15E103L

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  RADIAL LEADED

• ECCN Code:

  EAR99

• HTS Code:

  8504.50.80.00

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Construction:

  Cylindrical

• Core Material:

  FERRITE

• DC Resistance:

  4.6 Ω

• Inductance-Nom (L):

  10000 µH

• Inductor Application:

  POWER INDUCTOR

• Inductor Type:

  GENERAL PURPOSE INDUCTOR

• JESD-609 Code:

  e2

• Lead Diameter:

  0.7 mm

• Lead Length:

  4.5 mm

• Number of Functions:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -20 °C

• Package Diameter:

  16 mm

• Package Length:

  23 mm

• Package Style:

  PCB Mount

• Rated Current-Max:

  0.3 A

• Shape/Size Description:

  CYLINDRICAL PACKAGE

• Shielded:

  YES

• Special Feature:

  DC RESISTANCE IS MEASURED AT 20% TOLERANCE

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Copper (Sn/Cu)

• Terminal Placement:

  RADIAL

• Terminal Shape:

  WIRE

• Test Frequency:

  0.01 MHz

• Tolerance:

  10%
