ELC18B470L - Panasonic

Description: PANASONIC ELECTRONIC COMPONENTS - ELC18B470L - CHOKE, 47UH, 0.037OHM, 4.30A

Download ELC18B470L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELC18B470L - Panasonic - PCB symbol
click to zoom
PCB Footprints

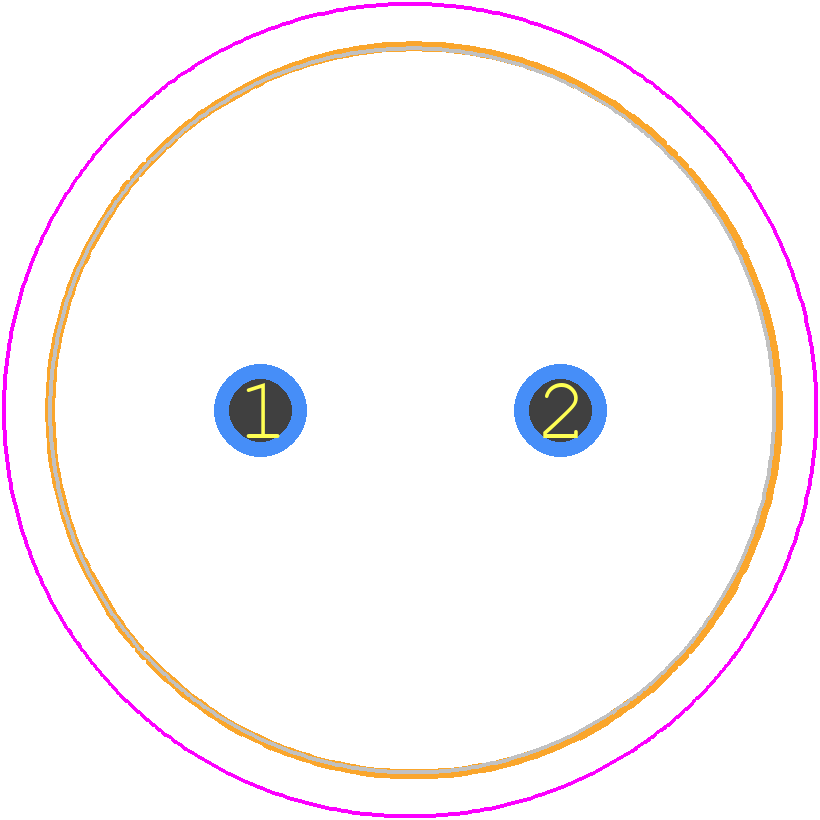

ELC18B470L - Panasonic PCB footprint - Other - Other - ELC18B470L-1
click to zoom
3D Models
ELC18B470L - Panasonic - 3D model - Other - ELC18B470L-1
click to zoom

ELC18B470L Details

  • Manufacturer Part Number:

    ELC18B470L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Construction:

    Cylindrical

  • Core Material:

    FERRITE

  • DC Resistance:

    0.037 Ω

  • Inductance-Nom (L):

    47 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    1 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    7.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Diameter:

    16 mm

  • Package Length:

    27 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    4.3 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    DC RESISTANCE IS MEASURED AT 20% TOLERANCE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    10%

ELC18B470L Frequently Asked Questions (FAQs)

  • The recommended land pattern for ELC18B470L is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm gap between the pads. This ensures proper soldering and minimizes the risk of solder bridging.
  • While ELC18B470L has a rated operating temperature range of -40°C to +105°C, it's not recommended for high-temperature applications above 85°C without proper derating. Consult the datasheet for derating guidelines or contact Panasonic support for specific guidance.
  • ELC18B470L is sensitive to electrostatic discharge (ESD). To prevent ESD damage, handle the components in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures.
  • The recommended soldering profile for ELC18B470L is a peak temperature of 260°C, with a dwell time of 10-30 seconds. Avoid exceeding 280°C to prevent damage to the component.
  • ELC18B470L is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. Consult the datasheet or contact Panasonic support for specific guidance on mechanical stress tolerance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELC18B470L Overview

Use the download button to access the ELC18B470L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELC18, or try a keyword search, such as Fixed Inductors
