ELFA30110 - Amphenol

Description: Amphenol Socapex ELFA, 5mm Pitch, 30 Way, 2 Row, Right Angle PCB Header, Through Hole

Download ELFA30110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELFA30110 - Amphenol - PCB symbol
click to zoom
PCB Footprints

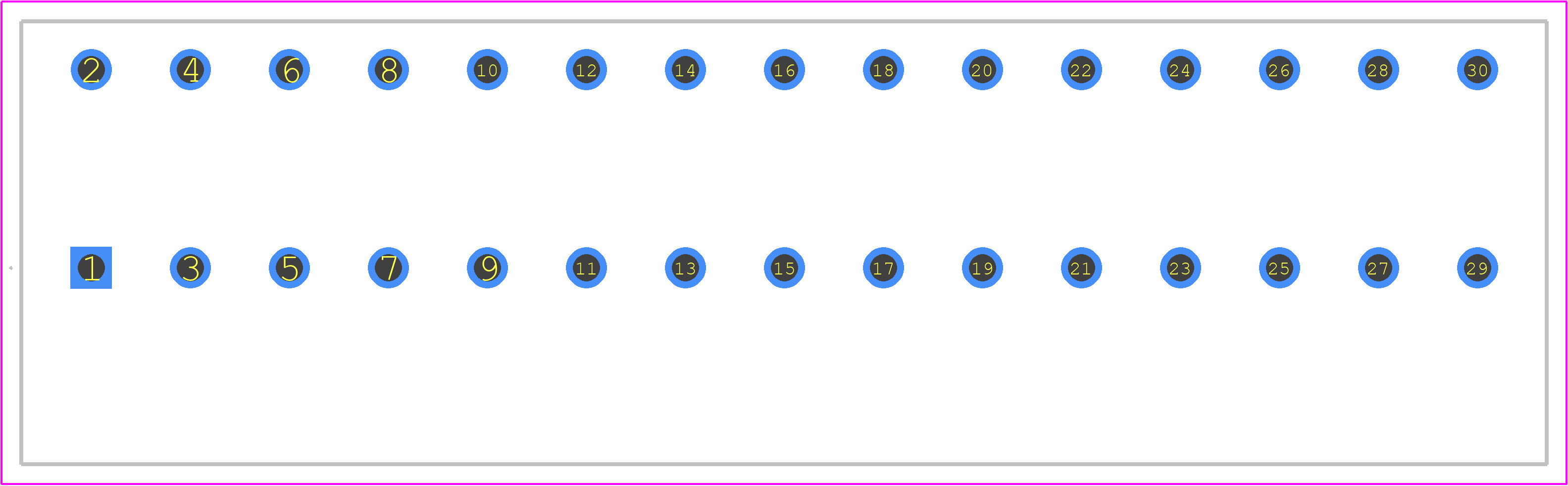

ELFA30110 - Amphenol PCB footprint - Other - Other - ELFA30110-3
click to zoom
3D Models
ELFA30110 - Amphenol - 3D model - Other - ELFA30110-3
click to zoom

ELFA30110 Details

  • Manufacturer Part Number:

    ELFA30110

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    6

  • Additional Feature:

    NYLON, UL: 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    30

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
