Part Image

ELFH08210 - Amphenol

Description: Amphenol Socapex ELFH, 5.08mm Pitch, 8 Way, 1 Row, Right Angle PCB Header, Through Hole

Download ELFH08210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELFH08210 - Amphenol - PCB symbol
click to zoom
PCB Footprints

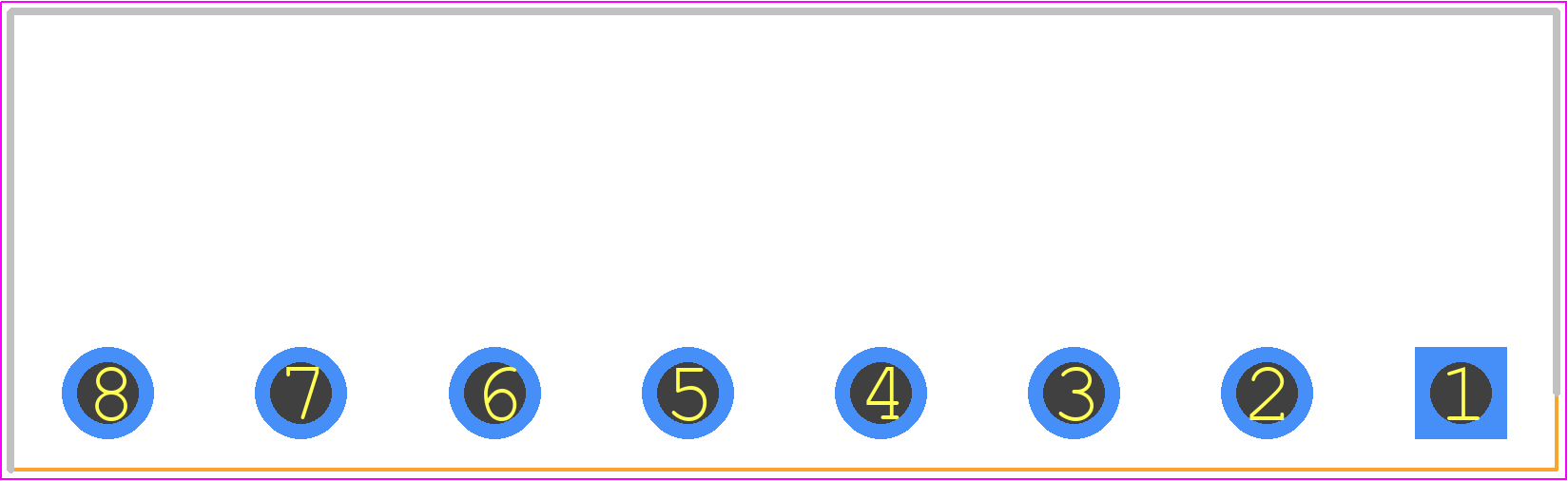

ELFH08210 - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - ELFH08210
click to zoom
3D Models
ELFH08210 - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - ELFH08210
click to zoom

ELFH08210 Details

  • Manufacturer Part Number:

    ELFH08210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

ELFH08210 Frequently Asked Questions (FAQs)

  • The recommended torque for the ELFH08210 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the jack screws.
  • Yes, the ELFH08210 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the ELFH08210 connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C (-133°F to 257°F) and a humidity rating of 95% RH at 40°C (104°F).
  • The ELFH08210 connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the ELFH08210 connector is designed for PCB mounting, with a PCB thickness range of 1.57 mm to 2.36 mm (0.062 in to 0.093 in).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELFH08210 Overview

Use the download button to access the ELFH08210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELFH0, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
