Part Image

ELFH08410 - Amphenol

Description: Amphenol Socapex ELFH, 7.62mm Pitch, 8 Way, 1 Row, Right Angle PCB Header, Through Hole

Download ELFH08410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELFH08410 - Amphenol - PCB symbol
click to zoom
PCB Footprints

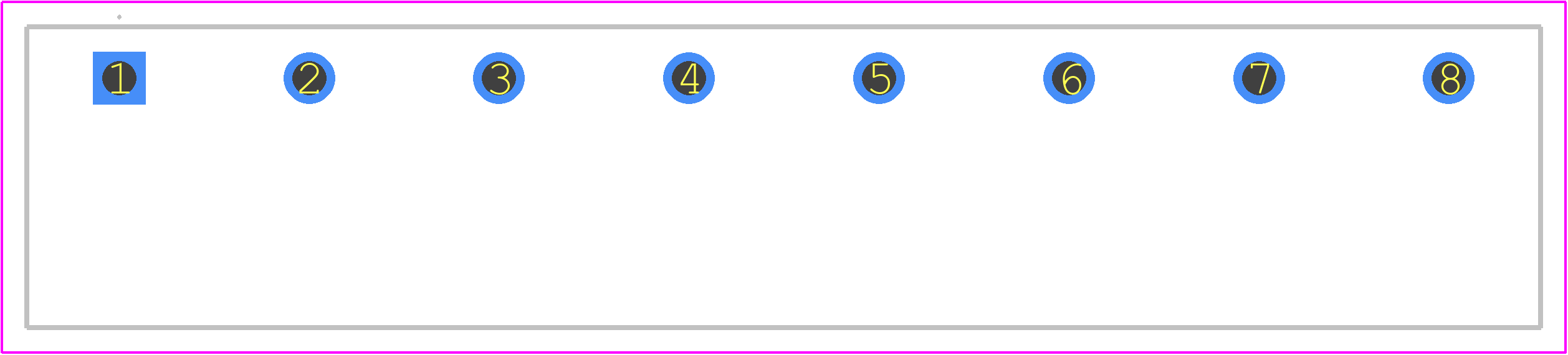

ELFH08410 - Amphenol PCB footprint - Other - Other - ELFH08410-5
click to zoom
3D Models
ELFH08410 - Amphenol - 3D model - Other - ELFH08410-5
click to zoom

ELFH08410 Details

  • Manufacturer Part Number:

    ELFH08410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CE; CSA; TUV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

ELFH08410 Frequently Asked Questions (FAQs)

  • The recommended torque value for the ELFH08410 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the nut locks.
  • Yes, the ELFH08410 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 2, which includes sinusoidal vibration testing at 10-2000 Hz, 10 G peak acceleration, and 96 hours duration.
  • Yes, the ELFH08410 connector is designed to operate in harsh environments. It meets the requirements of IEC 60529 IP67, which includes protection against immersion in water up to 1 meter for 30 minutes, and IEC 60068-2-52, which includes salt spray testing.
  • The maximum operating temperature of the ELFH08410 connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • Yes, the ELFH08410 connector is compatible with PCB surface-mount technology (SMT). It has a surface-mount termination style and can be mounted directly onto a printed circuit board.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELFH08410 Overview

Use the download button to access the ELFH08410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELFH0, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
