EM008LXOBB320CS2R - Everspin Technologies

Description: Expanded SPIbus interface supporting - Octal, Quad, Dual and Single SPI protocol • Up to 200MHz singleand doubletransfer rate (STR/DTR) for Octal SPI • Up to 133MHz, SPI, DSPI, QSPI • Data endurance: Unlimited read, write and erase operations for supported life of product • Data retention: 10 Years minimum across temperature

Download EM008LXOBB320CS2R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EM008LXOBB320CS2R model

Email notifications will be applied after download.

Send part feedback

Symbol

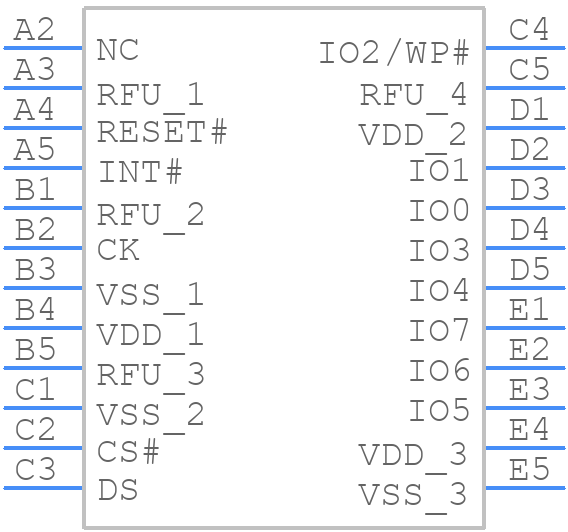

EM008LXOBB320CS2R - Everspin Technologies - PCB symbol

PCB Footprints

EM008LXOBB320CS2R - Everspin Technologies PCB footprint - BGA - BGA - 24-Ball TBGA, 5 x 5 ball array

3D Models

EM008LXOBB320CS2R - Everspin Technologies - 3D model - BGA - 24-Ball TBGA, 5 x 5 ball array

Datasheet Download Datasheet
Stock & Prices Price & Stock for EM008LXOBB320CS2R
Part Number EM008LXOBB320CS2R
Manufacturer Everspin Technologies
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-Ball TBGA, 5 x 5 ball array
Released Date Aug 28, 2024
Last Modified Date Aug 28, 2024 5:28 AM UTC
Pinout / Pin List Click Here (Member Only)

EM008LXOBB320CS2R Details

Manufacturer Part Number:
EM008LXOBB320CS2R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Everspin Technologies
YTEOL:
9
Memory IC Type:
STT MRAM
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
40

Trust Checks

Community Provided

System Verified

Community Approved

EM008LXOBB320CS2R Overview

Use the download button to access the EM008LXOBB320CS2R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EM008, or try a keyword search, such as MRAMs
