EM2120H01QI - Intel

Description: DC DC CONVERTER 1.325-5V

Download EM2120H01QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

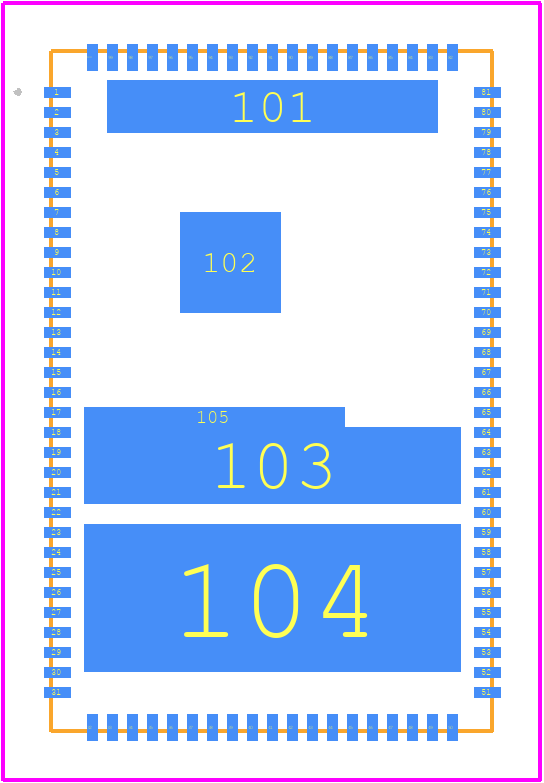

EM2120H01QI - Intel PCB footprint - Other - Other - EM2120H01QI-2
click to zoom
3D Models
EM2120H01QI - Intel  - 3D model - Other - EM2120H01QI-2
click to zoom

EM2120H01QI Details

  • Manufacturer Part Number:

    EM2120H01QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-104

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.35 TO 5V; ALSO REQUIRE INPUT VOLTAGE FROM 4.5 TO 16V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XXSS-N104

  • Length:

    17 mm

  • Number of Functions:

    1

  • Number of Terminals:

    104

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SPECIAL SHAPE

  • Seated Height-Max:

    6.91 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1333 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    11 mm

EM2120H01QI Frequently Asked Questions (FAQs)

  • Intel provides a reference design guide for the EM2120H01QI, which includes recommendations for PCB layout, thermal design, and component placement to ensure optimal performance and thermal management.
  • The EM2120H01QI requires a specific power sequencing and voltage regulation scheme. Intel provides a power management guide that outlines the recommended power-up and power-down sequences, as well as voltage regulator module (VRM) design guidelines.
  • The EM2120H01QI has a maximum junction temperature (Tj) of 100°C. Intel recommends using a heat sink with a thermal interface material (TIM) and a cooling system that can maintain a case temperature (Tc) below 70°C to ensure reliable operation.
  • Intel provides a performance optimization guide that includes recommendations for optimizing the EM2120H01QI's performance for specific applications, including tuning the clock frequency, adjusting the voltage, and optimizing the memory configuration.
  • Intel provides guidelines for EMC and EMI compliance, including recommendations for PCB layout, shielding, and filtering to minimize electromagnetic interference and ensure compliance with relevant standards.
