EM2130L02QI - Intel

Description: Intel® Enpirion® Power Solutions

Download EM2130L02QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EM2130L02QI - Intel - PCB symbol
click to zoom
PCB Footprints

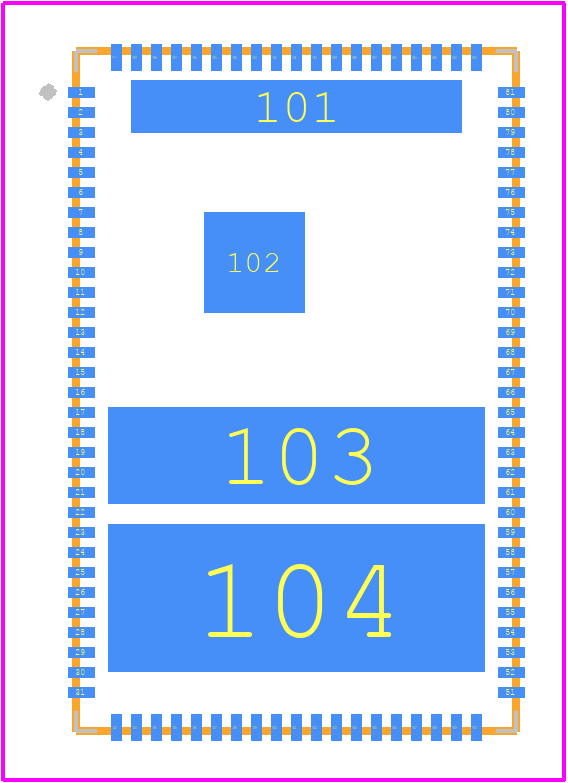

EM2130L02QI - Intel PCB footprint - Other - Other - EM2130L02QI
click to zoom
3D Models
EM2130L02QI - Intel - 3D model - Other - EM2130L02QI
click to zoom

EM2130L02QI Details

  • Manufacturer Part Number:

    EM2130L02QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-104

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.7 TO 1.325V; ALSO REQUIRE INPUT VOLTAGE FROM 4.5V TO 16V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XXSS-N104

  • Length:

    17 mm

  • Number of Functions:

    1

  • Number of Terminals:

    104

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SPECIAL SHAPE

  • Seated Height-Max:

    6.91 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    11 mm

EM2130L02QI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Ensure the device is operated within the specified temperature range (-40°C to 105°C).
  • Power sequencing: VCCIO, then VCC, then VREF. Voltage ramp-up time: 10ms maximum. Ensure a monotonic voltage ramp-up to prevent latch-up or damage.
  • Implement ESD protection devices (e.g., TVS diodes) on all external interfaces. Ensure a robust latch-up prevention scheme, including diodes and resistors, to prevent internal damage.
  • Use 0.1uF to 1uF decoupling capacitors, placed as close as possible to the device's power pins. Ensure a low-ESR capacitor with a voltage rating exceeding the maximum operating voltage.
