EM2140P01QI - Intel

Description: Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 1.325V 40A 4.5V - 16V Input

Download EM2140P01QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

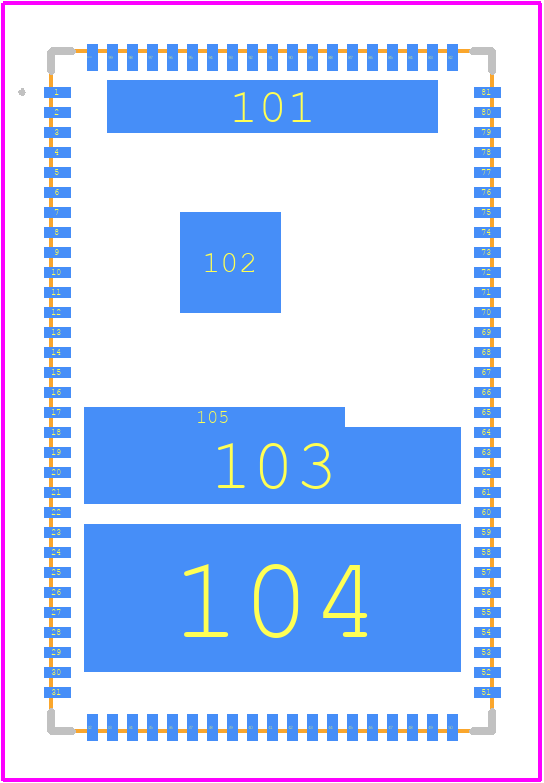

EM2140P01QI - Intel PCB footprint - Other - Other - EM2140P01QI-2
click to zoom
3D Models
EM2140P01QI - Intel  - 3D model - Other - EM2140P01QI-2
click to zoom

EM2140P01QI Details

  • Manufacturer Part Number:

    EM2140P01QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-104

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    OUTPUT VOLTAGE FROM 0.5V TO 1.325V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XBCC-B104

  • Length:

    17 mm

  • Number of Functions:

    1

  • Number of Terminals:

    104

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    6.91 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

EM2140P01QI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
  • Implement a robust power-on reset circuit, ensure a stable power supply, and consider using a thermistor or thermocouple to monitor temperature. Also, follow Intel's recommended thermal design guidelines.
  • The critical timing parameters include the clock frequency, clock duty cycle, and setup/hold times for the input signals. Refer to the datasheet for specific values and ensure your design meets these requirements.
  • Use a shielded enclosure, ensure proper grounding, and follow Intel's EMI/EMC design guidelines. Implement filtering and shielding on I/O lines, and consider using a common-mode choke or ferrite beads.
  • Use 0.1 μF to 1 μF decoupling capacitors with a voltage rating of 10 V or higher. Place them as close as possible to the device's power pins, with a maximum distance of 1 cm.
