EMC1423-1-AIZL-TR - Microchip

Description: Microchip EMC1423-1-AIZL-TR Temperature Sensor 10-Pin TSSOP, -40 → +125 °C

Download EMC1423-1-AIZL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

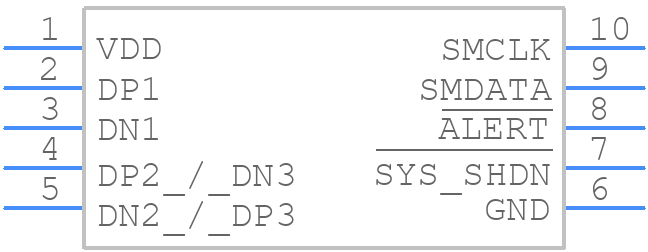

Symbol
EMC1423-1-AIZL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
EMC1423-1-AIZL-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Pin MSOP
click to zoom
3D Models
EMC1423-1-AIZL-TR - Microchip - 3D model - Small Outline Packages - 10-Pin MSOP
click to zoom

EMC1423-1-AIZL-TR Details

  • Manufacturer Part Number:

    EMC1423-1-AIZL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.50 MM PITCH, ROHS COMPLIANT, MO-187, TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    THERMAL WATCH DOG, HYETERESIS 420MV

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    10

  • Operating Current-Max:

    1.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

EMC1423-1-AIZL-TR Frequently Asked Questions (FAQs)

  • The thermal resistance of the EMC1423-1-AIZL-TR is typically around 25°C/W (junction-to-ambient) and 10°C/W (junction-to-case). However, this value can vary depending on the specific application and PCB design.
  • To minimize EMI, it's recommended to follow good PCB design practices such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. Additionally, placing the EMC1423-1-AIZL-TR near the temperature sensor and using a shielded cable can help reduce EMI.
  • The recommended operating temperature range for the EMC1423-1-AIZL-TR is -40°C to +125°C. However, the device can operate up to +150°C for short periods of time.
  • The EMC1423-1-AIZL-TR does not require calibration for accurate temperature measurements. The device has an internal calibration and trimming process that ensures accurate temperature readings. However, it's recommended to follow the application note AN1343 for guidelines on using the device in a specific application.
  • The maximum current consumption of the EMC1423-1-AIZL-TR is typically around 1.5mA when operating at 3.3V. However, this value can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMC1423-1-AIZL-TR Overview

Use the download button to access the EMC1423-1-AIZL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMC14, or try a keyword search, such as Temperature Sensors
