EMC1812T-AE/RW - Microchip

Description: Microchip Technology EMC1812T-AE/RW, Temperature & Humidity Sensor -40 → +125 °C ±1 °C, ±1.5 °C, 8-Pin WDFN

Download EMC1812T-AE/RW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

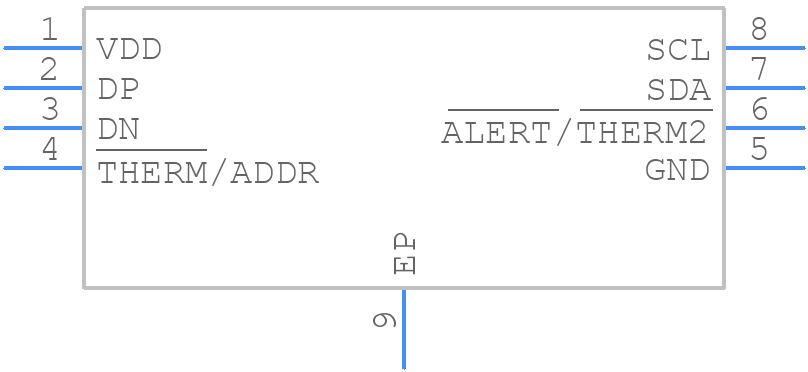

EMC1812T-AE/RW - Microchip - PCB symbol
click to zoom
PCB Footprints
EMC1812T-AE/RW - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Very, Very Thin Plastic Dual Flat, No Lead Package (RW)
click to zoom
3D Models
EMC1812T-AE/RW - Microchip - 3D model - Small Outline No-lead - 8-Lead Very, Very Thin Plastic Dual Flat, No Lead Package (RW)
click to zoom

EMC1812T-AE/RW Details

  • Manufacturer Part Number:

    EMC1812T-AE/RW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    WDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.73 mm

  • Body Length or Diameter:

    2 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.432 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

EMC1812T-AE/RW Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation across the entire operating temperature range, it's essential to follow proper PCB design and layout guidelines, use a reliable thermal management system, and ensure that the device is operated within its specified voltage and current ratings.
  • When handling the EMC1812T-AE/RW, it's essential to take precautions to prevent damage. This includes using an anti-static wrist strap or mat, handling the device by the body or leads, and avoiding bending or flexing the leads.
  • To troubleshoot issues with the EMC1812T-AE/RW, start by checking the power supply voltage, ensuring that it's within the specified range. Then, verify that the device is properly connected and configured. If issues persist, consult the datasheet and application notes for guidance.
  • To ensure electromagnetic compatibility (EMC) with the EMC1812T-AE/RW, it's essential to follow proper PCB design and layout guidelines, use shielding and filtering as needed, and ensure that the device is operated within its specified frequency range.
