EMC1815T-AE/9R - Microchip

Description: Board Mount Temperature Sensors 1.8V 5chnl temp snsr I2C 2alert addrssbl

Download EMC1815T-AE/9R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

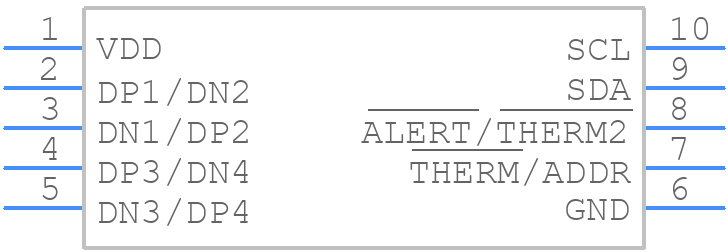

EMC1815T-AE/9R - Microchip - PCB symbol
click to zoom
PCB Footprints
EMC1815T-AE/9R - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - EMC1815T-AE/9R
click to zoom
3D Models
EMC1815T-AE/9R - Microchip - 3D model - Small Outline No-lead - EMC1815T-AE/9R
click to zoom

EMC1815T-AE/9R Details

  • Manufacturer Part Number:

    EMC1815T-AE/9R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.83 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    10

  • Operating Current-Max:

    0.432 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.07,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

EMC1815T-AE/9R Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the device, and a heat sink if necessary. Refer to Microchip's application note AN1123 for more information.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Also, consider using a thermal interface material with a high thermal conductivity.
  • Microchip recommends following the JEDEC J-STD-020D.1 standard for soldering profiles. The recommended peak temperature is 240°C, with a maximum time above 217°C of 30 seconds.
  • Follow proper ESD handling procedures, use ESD-protective packaging, and ensure that all personnel handling the device are grounded. Use an ESD wrist strap or mat, and avoid touching the device's pins.
  • Store the device in a dry, cool place, away from direct sunlight. The recommended storage temperature range is -40°C to 125°C, with a relative humidity of 60% or less.
