EMI4182MTTAG - onsemi

Description: ESD/EMI filter,common-mode,WDFN10 ON Semiconductor 6.8 V ESD/EMI, Surface Mount Mounting

Download EMI4182MTTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

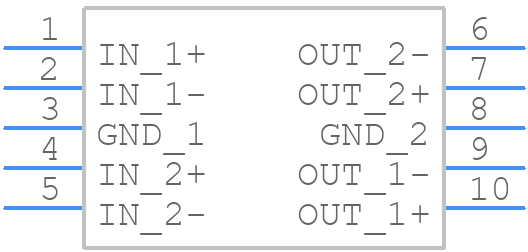

EMI4182MTTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI4182MTTAG - onsemi PCB footprint - Other - Other - WDFN 10 2.5x2, 0.5P CASE 511BM−01 ISSUE O
click to zoom
3D Models
EMI4182MTTAG - onsemi - 3D model - Other - WDFN 10 2.5x2, 0.5P CASE 511BM−01 ISSUE O
click to zoom

EMI4182MTTAG Details

  • Manufacturer Part Number:

    EMI4182MTTAG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    10

  • Manufacturer Package Code:

    511BM

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Approvals:

    IEC

  • Capacitance:

    0.8 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.1 A

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Width:

    2 mm

EMI4182MTTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI4182MTTAG close to the antenna and use a short, direct connection to minimize radiation.
  • Use a thermal pad or thermal interface material to ensure good thermal contact between the EMI4182MTTAG and the PCB. Also, ensure that the PCB is designed to handle the thermal stresses and mechanical stresses across the operating temperature range.
  • The critical components that affect EMI performance are the antenna, the PCB layout, and the decoupling capacitors. Ensure that these components are selected and designed carefully to minimize EMI radiation.
  • Use a spectrum analyzer to measure the EMI radiation. Check the PCB layout, antenna design, and component selection. Verify that the EMI4182MTTAG is properly decoupled and that the power supply is clean and stable.
  • Use a combination of ceramic capacitors (e.g., 100nF and 10nF) and a bulk capacitor (e.g., 10uF) to decouple the EMI4182MTTAG. Place the capacitors close to the device and ensure that the PCB layout is optimized for low inductance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI4182MTTAG Overview

Use the download button to access the EMI4182MTTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI41, or try a keyword search, such as Data Line Filters
