EMI4183MTTAG - onsemi

Description: Obsolete - EMI Common Mode Filter with ESD Protection

Download EMI4183MTTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

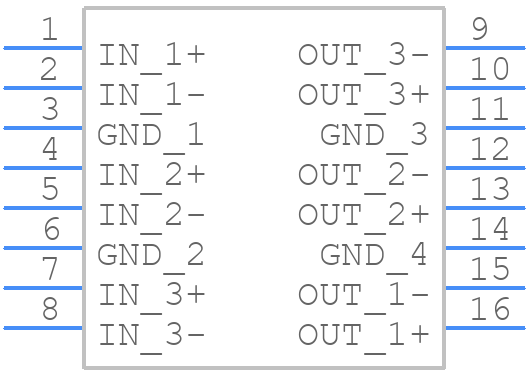

Symbol
EMI4183MTTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI4183MTTAG - onsemi PCB footprint - Other - Other - WDFN16 4x2, 0.5P CASE 511BL−01 ISSUE O
click to zoom
3D Models
EMI4183MTTAG - onsemi - 3D model - Other - WDFN16 4x2, 0.5P CASE 511BL−01 ISSUE O
click to zoom

EMI4183MTTAG Details

  • Manufacturer Part Number:

    EMI4183MTTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WDFN16 4x2, 0.5P

  • Package Description:

    WDFN16, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    511BL

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Approvals:

    IEC

  • Capacitance:

    0.8 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.1 A

  • Terminal Finish:

    Tin (Sn)

  • Width:

    2 mm

EMI4183MTTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for EMI4183MTTAG involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common mode choke or a ferrite bead on the input lines to reduce EMI radiation.
  • To ensure proper decoupling, place a 10uF ceramic capacitor between the VCC pin and the GND pin, and a 100nF ceramic capacitor between the VIN pin and the GND pin. Additionally, use a 10uF electrolytic capacitor between the VIN pin and the GND pin for bulk decoupling.
  • The maximum allowed voltage on the VIN pin is 6.5V. Exceeding this voltage may damage the device.
  • The EMI4183MTTAG has a fixed frequency response. However, you can use external components to adjust the frequency response. For example, you can add a capacitor in series with the input to shift the frequency response to a higher range.
  • The typical current consumption of the EMI4183MTTAG is around 10mA, but this can vary depending on the input voltage and the output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI4183MTTAG Overview

Use the download button to access the EMI4183MTTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI41, or try a keyword search, such as Data Line Filters
