EMI4192MTTAG - onsemi

Description: Highly Integrated Common Mode Filter (CMF) with ESD Protection provides protection and EMI reduction for systems using High Speed Serial Data Lines with cost and space savings over discrete solutions; Large Differential Mode Bandwidth with Cutoff Frequency > 2.0 GHz; High Common Mode Stop Band Attenuation: >25 dB at 700 MHz, >30 dB at 800 MHz; Provides ESD Protection to IEC61000-4-2 Level 4, 15 kV Contact Discharge; Low Channel Input Capacitance Provides Superior Impedance Matching Performance

Download EMI4192MTTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

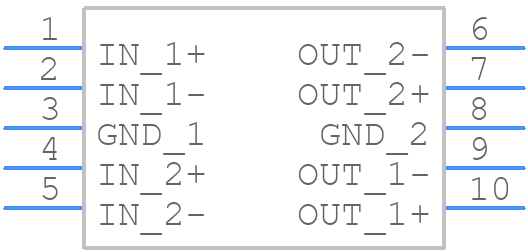

Symbol
EMI4192MTTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI4192MTTAG - onsemi PCB footprint - Other - Other - EMI4192MTTAG-1
click to zoom
3D Models
EMI4192MTTAG - onsemi - 3D model - Other - EMI4192MTTAG-1
click to zoom

EMI4192MTTAG Details

  • Manufacturer Part Number:

    EMI4192MTTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WDFN10 2.5x2, 0.5P

  • Package Description:

    WDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    511BM

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Capacitance:

    1.3 µF

  • DC Resistance-Max:

    5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC/EPOXY

  • Packing Method:

    TR

  • Rated Current:

    0.1 A

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Width:

    2 mm

EMI4192MTTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI filter close to the noise source and use short, direct traces to minimize inductance.
  • The capacitor values depend on the specific application and noise frequency. A general rule of thumb is to use a 10nF to 100nF capacitor for low-frequency noise and a 1nF to 10nF capacitor for high-frequency noise.
  • The maximum operating temperature for the EMI4192MTTAG is 125°C, with a recommended operating temperature range of -40°C to 105°C.
  • Yes, the EMI4192MTTAG is AEC-Q100 qualified and suitable for high-reliability and automotive applications, but ensure you follow the recommended PCB layout and thermal management guidelines.
  • Follow the recommended PCB layout and component selection guidelines, and perform EMC testing according to relevant standards such as CISPR 25 or FCC Part 15.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI4192MTTAG Overview

Use the download button to access the EMI4192MTTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI41, or try a keyword search, such as Data Line Filters
