EMI4193MTTAG - onsemi

Description: 6 Line Common Mode Choke Surface Mount 32 Ohms @ 100 MHz 100mA DCR 5Ohm

Download EMI4193MTTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

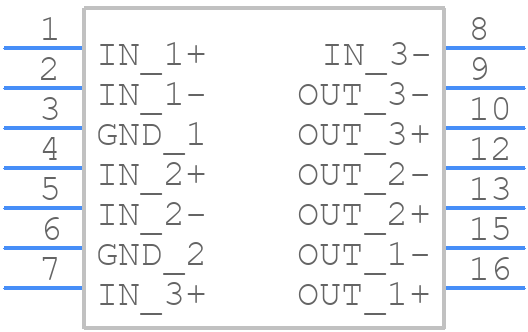

EMI4193MTTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI4193MTTAG - onsemi PCB footprint - Other - Other - WDFN16 4x2, 0.5P CASE 511BL ISSUE O
click to zoom
3D Models
EMI4193MTTAG - onsemi - 3D model - Other - WDFN16 4x2, 0.5P CASE 511BL ISSUE O
click to zoom

EMI4193MTTAG Details

  • Manufacturer Part Number:

    EMI4193MTTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WDFN16 4x2, 0.5P

  • Package Description:

    WDFN16, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    511BL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Approvals:

    IEC

  • Attenuation@Freq-Min:

    16 dB

  • Capacitance:

    0.8 µF

  • DC Resistance-Max:

    5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    32 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TR

  • Rated Current:

    0.1 A

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Width:

    2 mm

EMI4193MTTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, and a separate layer for the EMI filter's input and output traces, is recommended. Keep the input and output traces as short as possible and avoid crossing them.
  • Choose an EMI filter with a self-resonant frequency that is at least 10 times higher than your system's operating frequency. You can also add a series resistor or inductor to shift the self-resonant frequency.
  • The maximum operating temperature for the EMI4193MTTAG is 125°C. However, it's recommended to derate the component's performance at higher temperatures to ensure reliability.
  • Yes, the EMI4193MTTAG is designed to withstand vibrations up to 20G. However, it's recommended to follow proper mounting and soldering techniques to ensure the component's reliability in high-vibration environments.
  • Use a spectrum analyzer to identify the frequency range of the EMI issue. Then, use a near-field probe to locate the source of the EMI. Finally, adjust the EMI filter's placement, orientation, or add additional shielding to mitigate the issue.
