EMI5204MUTAG - onsemi

Description: Obsolete - EMI Filter with Integrated ESD Protection

Download EMI5204MUTAG Model

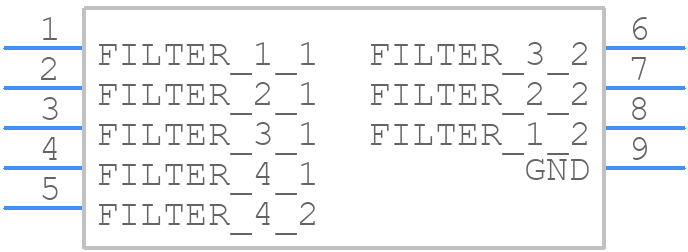

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EMI5204MUTAG - onsemi PCB footprint - Other - Other - EMI5204MUTAG-3
click to zoom
3D Models
EMI5204MUTAG - onsemi  - 3D model - Other - EMI5204MUTAG-3
click to zoom

EMI5204MUTAG Details

  • Manufacturer Part Number:

    EMI5204MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UDFN8, 1.7x1.35, 0.4P

  • Package Description:

    LEAD FREE, UDFN8, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    517BC

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Approvals:

    IEC

  • Capacitance:

    14 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • JESD-609 Code:

    e3

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    MATTE TIN

  • Width:

    1.35 mm

EMI5204MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI5204MUTAG close to the noise source and use a shielded enclosure to minimize radiation.
  • The capacitor values depend on the frequency range of interest and the desired attenuation. A good starting point is to use the values recommended in the datasheet, and then adjust based on simulation and measurement results.
  • The maximum operating temperature for the EMI5204MUTAG is 125°C, but it's recommended to derate the device for reliable operation above 85°C.
  • Yes, the EMI5204MUTAG is suitable for high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation.
  • Follow the recommended soldering profile and use a solder with a melting point above 217°C. Ensure the device is properly connected to the PCB and that all pins are securely soldered.
