EMI7204MUTAG - onsemi

Description: ±16 kV ESD Protection on Each Channel (IEC6100042 Level 4, Contact Discharge); L/C Values of 17 nH and 12 pF Deliver Exceptional S21 Performance Characteristics of 250 MHz f3dB and -23 dB Stop Band Attenuation from 800 MHz to 6.0 GHz ; Integrated EMI/ESD System Solution in UDFN Package Offers Exceptional Cost, System Reliability and Space Savings; These are PbFree Devices

Download EMI7204MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

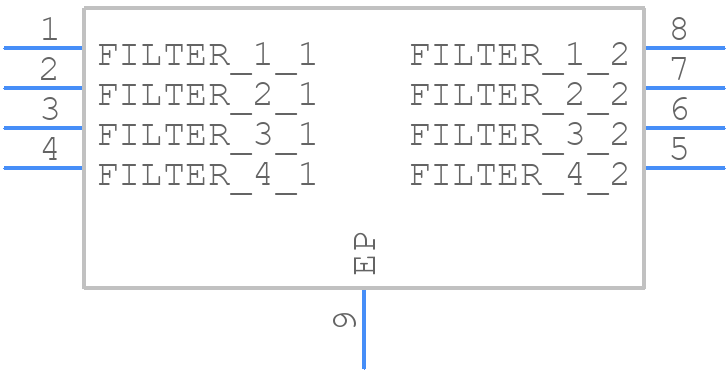

EMI7204MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI7204MUTAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN8, 1.7x1.35, 0.4P CASE 517BC ISSUE A
click to zoom
3D Models
EMI7204MUTAG - onsemi - 3D model - Small Outline No-lead - UDFN8, 1.7x1.35, 0.4P CASE 517BC ISSUE A
click to zoom

EMI7204MUTAG Details

  • Manufacturer Part Number:

    EMI7204MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN8, 1.7x1.35, 0.4P

  • Package Description:

    UDFN PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    517BC

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.39

  • Capacitance:

    24.2 µF

  • DC Resistance-Max:

    10 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • Inductance:

    0.017 µH

  • JESD-609 Code:

    e3

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.001 A

  • Rated Voltage:

    2.5 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Width:

    1.35 mm

EMI7204MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI filter components close to the connector and use a shielded cable to minimize radiation.
  • The capacitor values depend on the specific application and frequency range of interest. A good starting point is to use the recommended values in the datasheet, and then adjust based on measurement results and simulation.
  • The maximum operating temperature range for the EMI7204MUTAG is -40°C to 125°C, but the device can be operated up to 150°C for short periods of time.
  • Yes, the EMI7204MUTAG is qualified for automotive and high-reliability applications, and meets the requirements of AEC-Q100 and IATF 16949.
  • Use a combination of simulation tools, such as SPICE or FEM, and measurement tools, such as a spectrum analyzer, to ensure the EMI filter meets the required standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI7204MUTAG Overview

Use the download button to access the EMI7204MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI72, or try a keyword search, such as Data Line Filters
