EMI8042MUTAG - onsemi

Description: Total Insertion Loss < 2.5dB at 2.5GHz; Large Differential Mode Cutoff Frequency > 5GHz; High Common Mode Stop Band Attenuation > 10dB at 500MHz, 15dB at 700MHz; Low Channel Resistance 6.0 Ω ; Provides ESD Protection to IEC61000-4-2 Level 4, +/-15kV Contact; SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download EMI8042MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

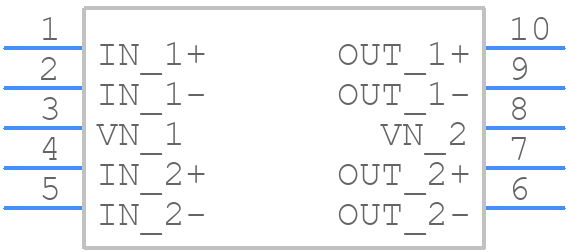

Symbol
EMI8042MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI8042MUTAG - onsemi PCB footprint - Other - Other - XDFN10 2.50x1.35, 0.5P_2021
click to zoom
3D Models
EMI8042MUTAG - onsemi - 3D model - Other - XDFN10 2.50x1.35, 0.5P_2021
click to zoom

EMI8042MUTAG Details

  • Manufacturer Part Number:

    EMI8042MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-10

  • Manufacturer Package Code:

    711AX

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7.59

  • Filter Type:

    DATA LINE FILTER

  • JESD-609 Code:

    e4

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

EMI8042MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI8042MUTAG close to the antenna and use a short, direct connection to minimize radiation.
  • Use a thermal pad or thermal tape to attach the device to a heat sink or a metal plate. Ensure good airflow around the device and avoid blocking the thermal pads.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can tolerate temperatures up to 125°C for short periods during soldering or reflow.
  • Yes, but ensure the device is properly sealed or coated to prevent moisture ingress. Follow the recommended storage and handling procedures to prevent moisture absorption.
  • Use a spectrum analyzer to identify the frequency and amplitude of the EMI. Check the PCB layout, component placement, and grounding. Ensure proper shielding and filtering are in place.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI8042MUTAG Overview

Use the download button to access the EMI8042MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI80, or try a keyword search, such as Data Line Filters
