EMI8043MUTAG - onsemi

Description: Total Insertion Loss < 2.5dB at 2.5GHz; Large Differential Mode Cutoff Frequency > 5GHz; High Common Mode Stop Band Attenuation > 10dB at 500MHz, 15dB at 700MHz; Low Channel Resistance 6.0 Ω ; Provides ESD Protection to IEC61000-4-2 Level 4, +/-15kV Contact; SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download EMI8043MUTAG Model

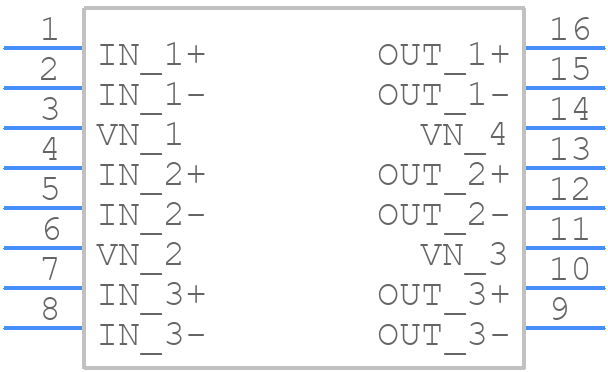

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EMI8043MUTAG - onsemi PCB footprint - Other - Other - XDFN16 4.0x1.35, 0.5P CASE 711AZ ISSUE O
click to zoom
3D Models
EMI8043MUTAG - onsemi  - 3D model - Other - XDFN16 4.0x1.35, 0.5P CASE 711AZ ISSUE O
click to zoom

EMI8043MUTAG Details

  • Manufacturer Part Number:

    EMI8043MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-16

  • Manufacturer Package Code:

    711AZ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7.59

  • Filter Type:

    DATA LINE FILTER

  • JESD-609 Code:

    e4

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

EMI8043MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI8043MUTAG close to the noise source and use a shielded enclosure to minimize radiation.
  • The capacitor values depend on the frequency range of interest and the desired attenuation. A good starting point is to use the values recommended in the datasheet, and then adjust based on simulation and measurement results.
  • The maximum operating temperature for the EMI8043MUTAG is 125°C, but it's recommended to derate the device for reliable operation above 85°C.
  • Yes, the EMI8043MUTAG is suitable for high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation.
  • Follow the recommended soldering profile and use a solder with a melting point above 217°C. Ensure the device is properly aligned and connected to the PCB, and use a pull-back or pull-down resistor to prevent floating inputs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI8043MUTAG Overview

Use the download button to access the EMI8043MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI80, or try a keyword search, such as Data Line Filters
