Part Image

EMI8132MUTAG - onsemi

Description: Low Channel Resistance 6.0 ohm; High Common Mode Stop Band Attenuation 30dB at 750MHz; Large Differential Mode Cutoff Frequency f3dB >2.5GHz; Total Insertion Loss DMloss <3.7dB at 2.5GHz

Download EMI8132MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

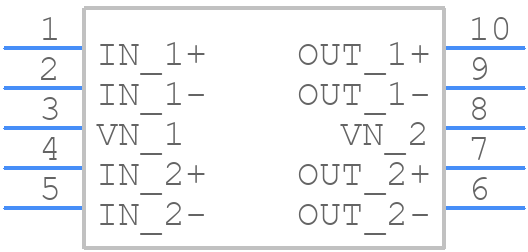

EMI8132MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI8132MUTAG - onsemi PCB footprint - Other - Other - EMI8132MUTAG-2
click to zoom
3D Models
EMI8132MUTAG - onsemi - 3D model - Other - EMI8132MUTAG-2
click to zoom

EMI8132MUTAG Details

  • Manufacturer Part Number:

    EMI8132MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    XDFN-10

  • Manufacturer Package Code:

    711AU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • JESD-609 Code:

    e4

  • Length:

    2.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    9 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.35 mm

EMI8132MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI filter as close to the connector as possible, and use a common mode choke with a high impedance at the frequency of interest.
  • The capacitor values depend on the specific application and the frequency range of interest. A good starting point is to use capacitors with values between 10nF to 100nF, and adjust based on the measured EMI performance.
  • The maximum operating temperature for the EMI8132MUTAG is 125°C, but it's recommended to derate the component for reliable operation.
  • The EMI8132MUTAG is rated for up to 30V, but it's not recommended for high-voltage applications. For high-voltage applications, consider using a different EMI filter or consult with onsemi's application engineers.
  • Use a combination of simulation tools and measurement techniques to ensure the EMI filter meets the required EMI standards. Consult with onsemi's application engineers for guidance on meeting specific EMI standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI8132MUTAG Overview

Use the download button to access the EMI8132MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI81, or try a keyword search, such as Data Line Filters
