EMI8142MUTAG - onsemi

Description: Total Insertion DMloss < 2.5dB at 2.5GHz; Large Differential Mode Cutoff Frequency >5GHz; High Common Mode Stop Band Attenuation >10dB at 500MHz, 15dB at 700MHz; Low Channel Resistance 6.0 ohms; Provides ESD Protection to IEC61000-4-2 Level 4, +/-15kV Contact

Download EMI8142MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

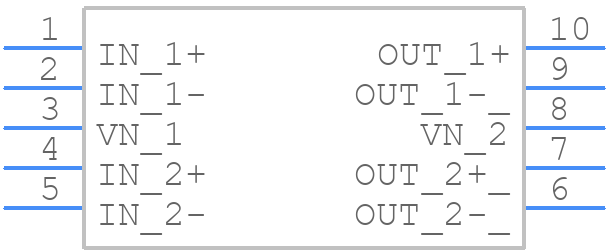

EMI8142MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI8142MUTAG - onsemi PCB footprint - Other - Other - EMI8142MUTAG-1
click to zoom
3D Models
EMI8142MUTAG - onsemi - 3D model - Other - EMI8142MUTAG-1
click to zoom

EMI8142MUTAG Details

  • Manufacturer Part Number:

    EMI8142MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-10

  • Manufacturer Package Code:

    711AU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6.94

  • Filter Type:

    DATA LINE FILTER

  • JESD-609 Code:

    e4

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Power Supply:

    3.3

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)
