Part Image

EMI8143MUTAG - onsemi

Description: Total Insertion DMloss < 2.5dB at 2.5GHz; Large Differential Mode Cutoff Frequency >5GHz; High Common Mode Stop Band Attenuation >10dB at 500MHz, 15dB at 700MHz; Low Channel Resistance 6.0 ohms; Provides ESD Protection to IEC61000-4-2 Level 4, +/-15kV Contact

Download EMI8143MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

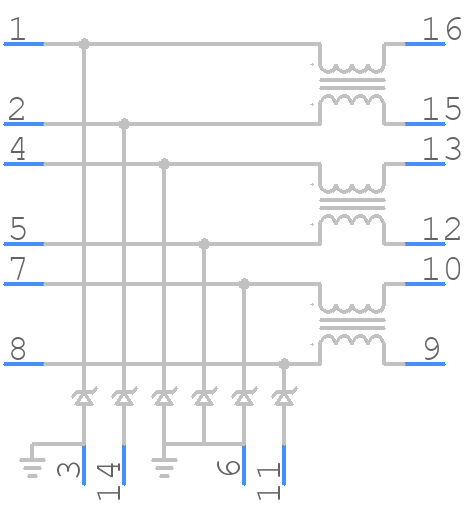

EMI8143MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
EMI8143MUTAG - onsemi PCB footprint - Other - Other - XDFN16 3.5x1.35, 0.4P CASE 711AW ISSUE A
click to zoom
3D Models
EMI8143MUTAG - onsemi - 3D model - Other - XDFN16 3.5x1.35, 0.4P CASE 711AW ISSUE A
click to zoom

EMI8143MUTAG Details

  • Manufacturer Part Number:

    EMI8143MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-16

  • Manufacturer Package Code:

    711AW

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.94

  • Filter Type:

    DATA LINE FILTER

  • JESD-609 Code:

    e4

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Power Supply:

    3.3

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

EMI8143MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the EMI8143MUTAG close to the antenna and use a short, direct connection to minimize radiation.
  • The EMI8143MUTAG requires a 2.7V to 5.5V power supply. Ensure the voltage regulator is stable and decoupled with a 10uF capacitor to minimize noise.
  • The EMI8143MUTAG supports antenna gains up to 3dBi. Higher gains may result in reduced performance and increased EMI.
  • The EMI8143MUTAG is optimized for use with a monopole antenna. Using a different antenna type may require additional matching networks and may affect performance.
  • Use a spectrum analyzer to identify the frequency of the EMI. Check the PCB layout, antenna placement, and power supply noise. Ensure the EMI8143MUTAG is properly biased and the antenna is properly matched.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMI8143MUTAG Overview

Use the download button to access the EMI8143MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMI81, or try a keyword search, such as Data Line Filters
