EMIF02-USB01F2 - STMicroelectronics

Description: 2-line EMI filter and ESD protection with R pull-up for USB interfaces

Download EMIF02-USB01F2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

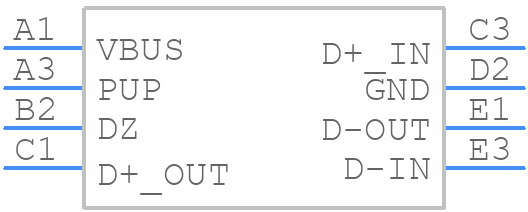

EMIF02-USB01F2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
EMIF02-USB01F2 - STMicroelectronics PCB footprint - Other - Other - EMIF02-USB01F2-3
click to zoom
3D Models
EMIF02-USB01F2 - STMicroelectronics - 3D model - Other - EMIF02-USB01F2-3
click to zoom

EMIF02-USB01F2 Details

  • Manufacturer Part Number:

    EMIF02-USB01F2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, FLIP CHIP-8

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Approvals:

    IEC

  • Capacitance:

    40 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.65 mm

  • JESD-609 Code:

    e1

  • Length:

    1.97 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TR

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    1.27 mm

EMIF02-USB01F2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EMIF02-USB01F2 is -40°C to 85°C.
  • Yes, the EMIF02-USB01F2 is designed for high-speed USB applications and can operate at speeds up to 480 Mbps.
  • Yes, the EMIF02-USB01F2 has built-in ESD protection to protect against electrostatic discharge events.
  • The maximum current rating for the EMIF02-USB01F2 is 1.5 A.
  • Yes, the EMIF02-USB01F2 is compatible with both USB 2.0 and USB 3.0 standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMIF02-USB01F2 Overview

Use the download button to access the EMIF02-USB01F2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMIF0, or try a keyword search, such as Data Line Filters
