EMIF03-SIM02M8 - STMicroelectronics

Description: 3 line IPAD, EMI filter for SIM card applications

Download EMIF03-SIM02M8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

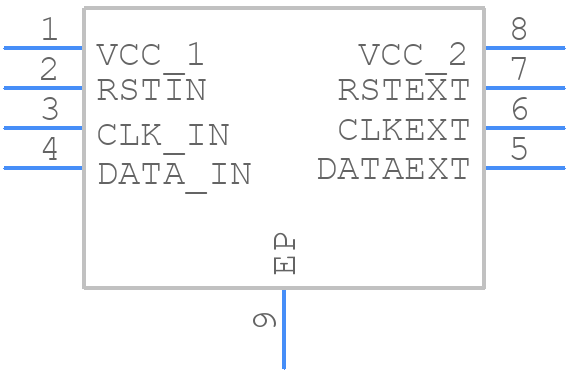

EMIF03-SIM02M8 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
EMIF03-SIM02M8 - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN 1.7 x 1.5
click to zoom
3D Models
EMIF03-SIM02M8 - STMicroelectronics - 3D model - Small Outline No-lead - QFN 1.7 x 1.5
click to zoom

EMIF03-SIM02M8 Details

  • Manufacturer Part Number:

    EMIF03-SIM02M8

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Approvals:

    IEC

  • Capacitance:

    17 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • JESD-609 Code:

    e4

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.5 mm

EMIF03-SIM02M8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the antenna, and the antenna should be matched to 50 ohms. A good layout will help minimize electromagnetic interference and ensure optimal performance.
  • The EMIF03-SIM02M8 requires a single 1.8V power supply. Ensure that the power supply is clean and stable, and that the device is decoupled with a 10uF capacitor. Additionally, ensure that the power supply can provide enough current to support the device's operating modes.
  • The EMIF03-SIM02M8 can operate in a temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within a range of 0°C to 70°C for optimal performance.
  • The EMIF03-SIM02M8 has an internal antenna matching network. To optimize antenna performance, ensure that the antenna is matched to 50 ohms and that the device is configured for the correct frequency band. The device's datasheet provides guidelines for antenna matching and configuration.
  • The typical current consumption of the EMIF03-SIM02M8 varies depending on the operating mode. In transmit mode, the current consumption is typically around 40mA. In receive mode, the current consumption is typically around 20mA. In standby mode, the current consumption is typically around 1mA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMIF03-SIM02M8 Overview

Use the download button to access the EMIF03-SIM02M8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMIF0, or try a keyword search, such as Data Line Filters

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
