EMIF04-1005M8 - STMicroelectronics

Description: 4-line IPAD™ low capacitance EMI filter and ESD protection in micro QFN package

Download EMIF04-1005M8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

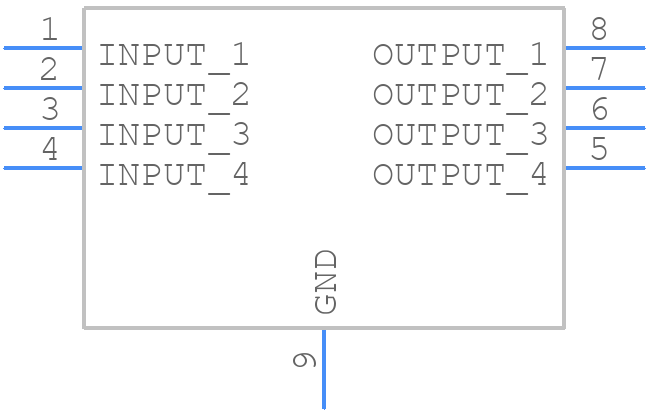

EMIF04-1005M8 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
EMIF04-1005M8 - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN 1.7 x 1.5
click to zoom
3D Models
EMIF04-1005M8 - STMicroelectronics - 3D model - Small Outline No-lead - QFN 1.7 x 1.5
click to zoom

EMIF04-1005M8 Details

  • Manufacturer Part Number:

    EMIF04-1005M8

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, QFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.39

  • Approvals:

    UL; IEC

  • Capacitance:

    52 µF

  • DC Resistance-Max:

    110 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • JESD-609 Code:

    e4

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TR

  • Rated Voltage:

    10 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.5 mm

EMIF04-1005M8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and avoid crossing them over each other.
  • Use a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device's power pins. Ensure the capacitors are connected between the power pin and the ground pin.
  • The EMIF04-1005M8 can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Handle the device by the body or pins, avoiding touching the die or internal components.
  • Use a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a ramp-up rate of 3°C/s. Ensure the device is not exposed to temperatures above 260°C for more than 10 seconds.
