EMIF04-EAR02M8 - STMicroelectronics

Description: EMI Filter Circuits 2-line 50mA per line 900 MHz -30dB

Download EMIF04-EAR02M8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

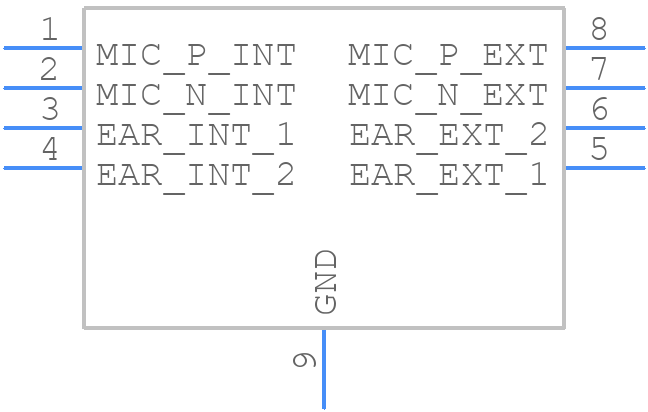

EMIF04-EAR02M8 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
EMIF04-EAR02M8 - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - EMIF04-EAR02M8
click to zoom
3D Models
EMIF04-EAR02M8 - STMicroelectronics - 3D model - Small Outline No-lead - EMIF04-EAR02M8
click to zoom

EMIF04-EAR02M8 Details

  • Manufacturer Part Number:

    EMIF04-EAR02M8

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MICRO QFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Approvals:

    UL; IEC

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • JESD-609 Code:

    e3

  • Length:

    1.75 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TR

  • Terminal Finish:

    Matte Tin (Sn)

  • Width:

    1.55 mm

EMIF04-EAR02M8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the decoupling capacitors should be placed as close as possible to the device pins.
  • The device requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to ensure a clean and stable power supply. Decoupling capacitors (e.g., 10uF and 100nF) should be placed close to the device pins.
  • The maximum operating frequency of the EMIF04-EAR02M8 is 133MHz, but it can be overclocked up to 166MHz with proper PCB design and cooling.
  • The device has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A heat sink or a thermal interface material (TIM) can be used to improve heat dissipation. The maximum junction temperature is 150°C.
  • The clock signal should be routed as a differential pair, with a controlled impedance of 50-60 ohms. The clock signal should be routed close to the device, and the clock traces should be as short as possible.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMIF04-EAR02M8 Overview

Use the download button to access the EMIF04-EAR02M8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMIF0, or try a keyword search, such as Data Line Filters

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
