EMIF06-1005M12 - STMicroelectronics

Description: 6-line IPAD™ low capacitance EMI filter and ESD protection in micro QFN package

Download EMIF06-1005M12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

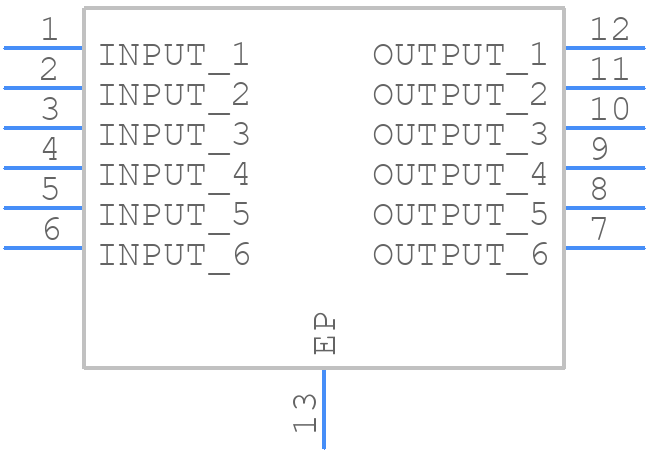

Symbol
EMIF06-1005M12 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
EMIF06-1005M12 - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN 2.5 x 1.5
click to zoom
3D Models
EMIF06-1005M12 - STMicroelectronics - 3D model - Small Outline No-lead - QFN 2.5 x 1.5
click to zoom

EMIF06-1005M12 Details

  • Manufacturer Part Number:

    EMIF06-1005M12

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, QFN-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.79

  • Approvals:

    IEC

  • Capacitance:

    52 µF

  • DC Resistance-Max:

    110 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.5 mm

EMIF06-1005M12 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use a common mode choke to reduce EMI.
  • Use a reflow soldering process with a peak temperature of 260°C. Ensure the PCB is clean and free of oxidation. Apply a small amount of solder paste to the pads and use a soldering iron with a temperature-controlled tip.
  • The EMIF06-1005M12 can operate from -40°C to 125°C, but the maximum junction temperature should not exceed 150°C.
  • Use a voltage regulator to limit the input voltage to 12V. Add a fuse or a PTC (Positive Temperature Coefficient) thermistor to protect against overcurrent. Consider adding a TVS (Transient Voltage Suppressor) diode for additional protection.
  • A 10uF to 22uF ceramic capacitor with a voltage rating of 16V or higher is recommended. The capacitor should be placed as close as possible to the input pins of the EMIF06-1005M12.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMIF06-1005M12 Overview

Use the download button to access the EMIF06-1005M12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMIF0, or try a keyword search, such as Data Line Filters

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
