EMIF08-LCD04M16 - STMicroelectronics

Description: STMicroelectronics EMIF08-LCD04M16 Octal Uni-Directional EMI Filter & ESD Protector, 16-Pin μQFN

Download EMIF08-LCD04M16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

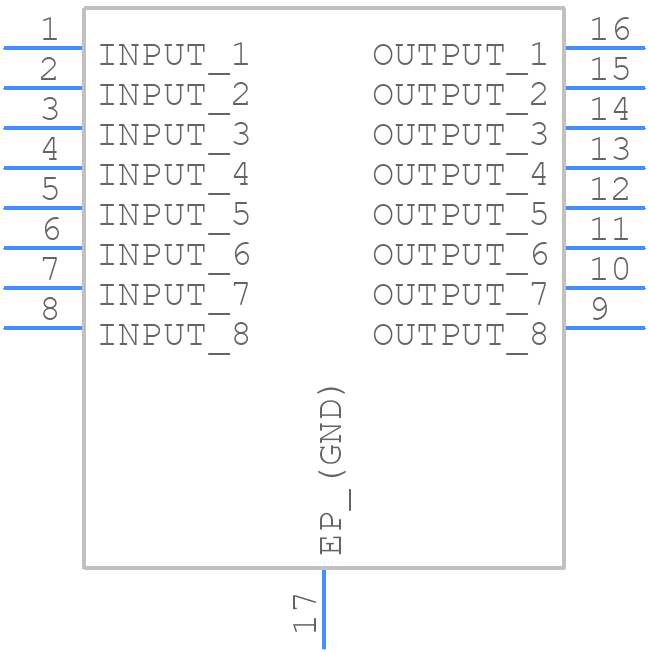

EMIF08-LCD04M16 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
EMIF08-LCD04M16 - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - Micro QFN 3.3x1.35 16L_2021
click to zoom
3D Models
EMIF08-LCD04M16 - STMicroelectronics - 3D model - Small Outline No-lead - Micro QFN 3.3x1.35 16L_2021
click to zoom

EMIF08-LCD04M16 Details

  • Manufacturer Part Number:

    EMIF08-LCD04M16

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MICRO QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.84

  • Approvals:

    UL; IEC

  • Capacitance:

    18 µF

  • DC Resistance-Max:

    20 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • Inductance:

    0.012 µH

  • Length:

    3.3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Width:

    1.35 mm

EMIF08-LCD04M16 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EMIF08-LCD04M16 is -40°C to 85°C.
  • The EMIF08-LCD04M16 can be interfaced with a microcontroller using a 4-bit or 8-bit parallel interface, or an SPI interface. The specific interface used will depend on the microcontroller and the application requirements.
  • The typical power consumption of the EMIF08-LCD04M16 is around 100 μA, but this can vary depending on the display mode, backlight usage, and other factors.
  • No, the EMIF08-LCD04M16 is designed for use with resistive touchscreens, not capacitive touchscreens.
  • The EMIF08-LCD04M16 supports a maximum display resolution of 320x240 pixels.
