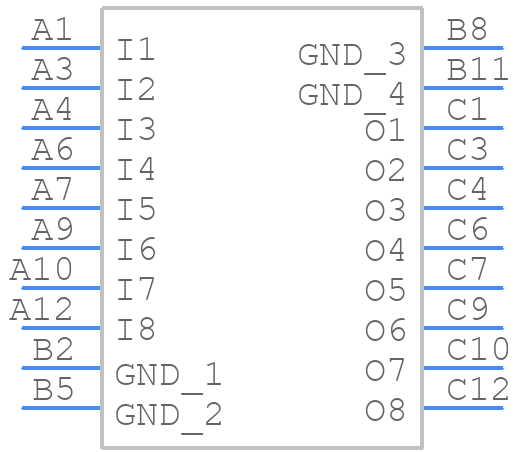

EMIF08-VID1F3 - STMicroelectronics

EMIF08-VID1F3 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
• How do I configure the VID (Voltage Identification) pins?
  The VID pins should be connected to a voltage source or a resistive divider network to set the output voltage. The configuration depends on the specific application and required output voltage. Refer to the datasheet and application notes for more information.
• What is the maximum input voltage that the EMIF08-VID1F3 can handle?
  The maximum input voltage is 5.5V, but it's recommended to operate within the specified input voltage range (3.3V to 5V) for optimal performance and reliability.
• Can I use the EMIF08-VID1F3 in a high-temperature environment?
  The EMIF08-VID1F3 is rated for operation up to 125°C, but it's essential to ensure proper thermal management and follow the recommended operating conditions to prevent overheating and ensure reliability.
• How do I troubleshoot issues with the EMIF08-VID1F3?
  Start by checking the input voltage, output voltage, and current consumption. Verify that the VID pins are correctly configured and that the device is properly soldered. Consult the datasheet, application notes, and STMicroelectronics' support resources for further guidance.
