EML15US12-E footprint, schematic symbol and 3D model by XP POWER

Symbol

click to zoom

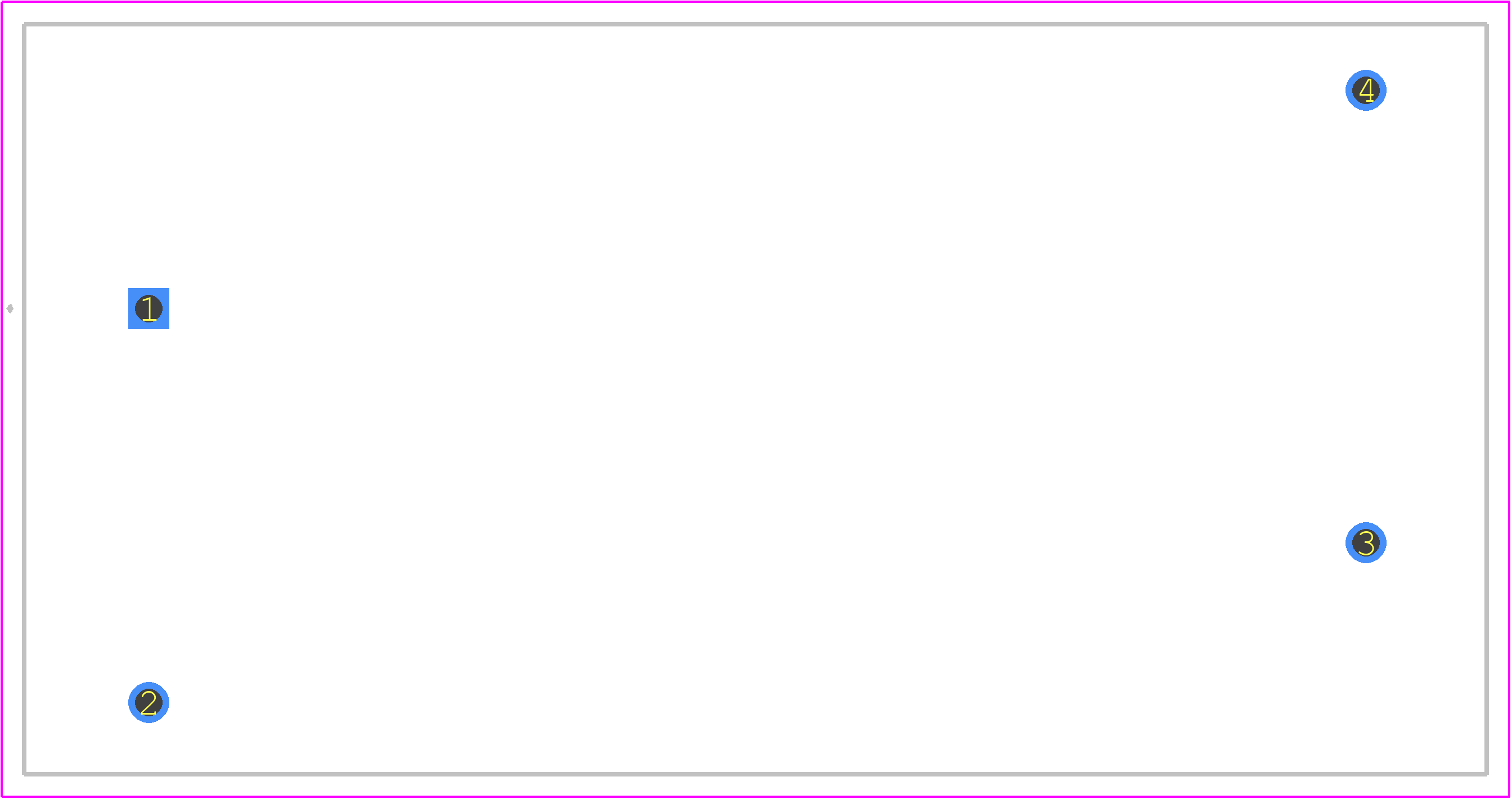

PCB Footprints

EML15US12-E - XP POWER PCB footprint - Other - Other - EML15US12-E-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EML15US12-E
Part Number EML15US12-E
Manufacturer XP POWER
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - EML15US12-E-2
Released Date Dec 17, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EML15US12-E Details

Manufacturer Part Number:
EML15US12-E
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-4
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Additional Feature:
ALSO OPERATE WITH 120V TO 370VDC
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
264 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XDMA-P4
Length:
65 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
50 °C
Operating Temperature-Min:
-20 °C
Output Voltage-Max:
48 V
Output Voltage-Min:
3 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
24.9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
15 W
Trim/Adjustable Output:
NO
Width:
33.3 mm

EML15US12-E Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat dissipation.
To ensure reliable start-up, XP Power recommends a soft-start circuit or an NTC thermistor in series with the input voltage to limit the inrush current. Additionally, a bulk capacitor at the input can help to reduce voltage droop during start-up.
The maximum allowable capacitance on the output is 47uF. Exceeding this value may cause instability or oscillation in the module.
Yes, the EML15US12-E can be used in a redundant configuration, but it's essential to ensure that the modules are synchronized to prevent current fighting. XP Power recommends using a diode ORing circuit or an external ORing controller to achieve this.
The derating curve for the EML15US12-E is typically 2.5% per degree Celsius above 40°C. This means that for every degree above 40°C, the output power should be derated by 2.5% to ensure reliable operation.
