ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
While the datasheet specifies a maximum voltage rating of 12V, it's essential to note that the device can withstand voltage transients up to 15V for a short duration (less than 100ms). However, continuous operation above 12V is not recommended.
To protect the device from ESD damage, follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that all equipment and tools are properly grounded, and avoid touching the device's pins or exposed internal components.
ROHM recommends storing the device in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -20°C to 40°C, and the relative humidity should be below 60%. Avoid storing the device in environments with high levels of pollution or corrosive gases.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMN11T2R Overview

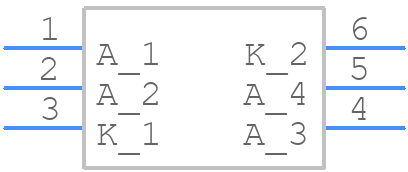

Use the download button to access the EMN11T2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMN11,
or try a keyword search, such as Rectifier Diodes
