EMS22A30-C28-LS6 - Bourns

Description: Rotary Encoder Magnetic 1024 Binary (Absolute) Vertical 3.3V 100M Straight

Download EMS22A30-C28-LS6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

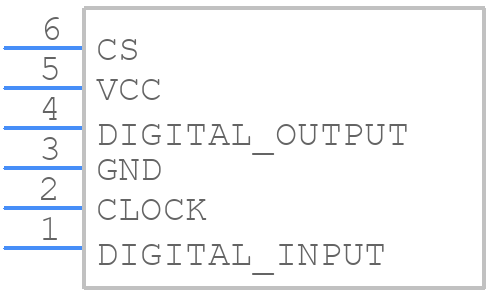

Symbol
EMS22A30-C28-LS6 - Bourns - PCB symbol
click to zoom
PCB Footprints
EMS22A30-C28-LS6 - Bourns PCB footprint - Other - Other - EMS22A30-C28-LS6-5
click to zoom
3D Models
EMS22A30-C28-LS6 - Bourns - 3D model - Other - EMS22A30-C28-LS6-5
click to zoom

EMS22A30-C28-LS6 Details

  • Manufacturer Part Number:

    EMS22A30-C28-LS6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-6

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Bourns Inc

  • Configuration:

    SINGLE

  • JESD-609 Code:

    e3

  • Mounting Feature:

    PANEL MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

  • Supply Voltage-Max:

    3.63 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

EMS22A30-C28-LS6 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the EMS22A30-C28-LS6 is a rectangular pad with dimensions of 2.5mm x 1.3mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
  • The maximum operating temperature range for the EMS22A30-C28-LS6 is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • Handle the EMS22A30-C28-LS6 in an ESD-protected environment, using ESD-protective packaging, wrist straps, and mats. Avoid touching the component's pins or leads, and use ESD-protective tools and equipment.
  • The recommended torque for the EMS22A30-C28-LS6's screw terminals is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMS22A30-C28-LS6 Overview

Use the download button to access the EMS22A30-C28-LS6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMS22, or try a keyword search, such as Optical Position Encoders
