The recommended PCB footprint for the EMS22A50-B28-LS6 is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 0.5mm radius corner. The pad should be centered on the component and have a minimum of 0.2mm clearance around the component body.
To ensure reliable soldering of the EMS22A50-B28-LS6, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component, and avoid applying excessive force or pressure during the soldering process.
The maximum operating temperature range for the EMS22A50-B28-LS6 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the EMS22A50-B28-LS6 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mounting system to minimize the risk of component damage.
To handle ESD protection for the EMS22A50-B28-LS6, follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the component in an ESD-protective package. Additionally, consider using ESD-protection devices, such as TVS diodes or ESD-protection ICs, in the circuit design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMS22A50-B28-LS6 Overview

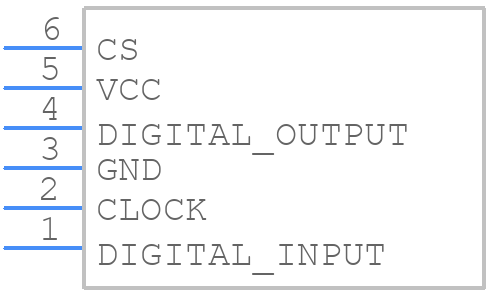

Use the download button to access the EMS22A50-B28-LS6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMS22,
or try a keyword search, such as Optical Position Encoders
