Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce electromagnetic interference, and optimize the overall performance of the EMS22P50-B28-LS6.
The EMS22P50-B28-LS6 has a high power rating, and proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. You can also consider using thermal interface materials to improve heat transfer.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the EMS22P50-B28-LS6 within a temperature range of -20°C to 125°C for optimal performance and longevity.
To ensure the reliability and longevity of the EMS22P50-B28-LS6 in high-vibration environments, follow proper mounting and soldering techniques, and consider using additional mechanical support or potting compounds to reduce stress on the component.
Store the EMS22P50-B28-LS6 in a dry, cool place, away from direct sunlight and moisture. Handle the component by the body, avoiding touching the leads or electrical contacts to prevent damage or contamination. Follow proper electrostatic discharge (ESD) precautions when handling the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMS22P50-B28-LS6 Overview

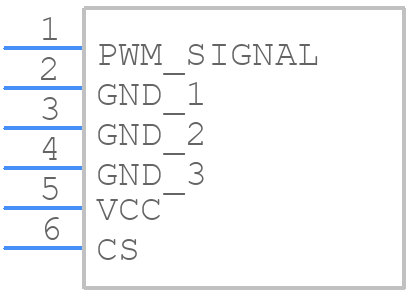

Use the download button to access the EMS22P50-B28-LS6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMS22,
or try a keyword search, such as Optical Position Encoders
