The recommended PCB layout for optimal performance involves keeping the traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, the device should be operated within the specified temperature range and derated accordingly.
The EMS22P50-D28-LT6 is a sensitive device and requires proper ESD protection and handling precautions. It's recommended to handle the device in an ESD-controlled environment, use ESD-safe packaging and materials, and follow proper grounding procedures when handling the device.
The EMS22P50-D28-LT6 is designed to meet the requirements of various industrial and automotive applications, including those with high vibration and shock. However, it's essential to follow proper mounting and installation procedures, and ensure that the device is securely fastened to the PCB or chassis to prevent mechanical stress and damage.
The recommended soldering and rework procedures for the EMS22P50-D28-LT6 involve using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 180°C to 190°C. It's also recommended to use a soldering technique that minimizes the thermal stress on the device, and to avoid using excessive solder or flux.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMS22P50-D28-LT6 Overview

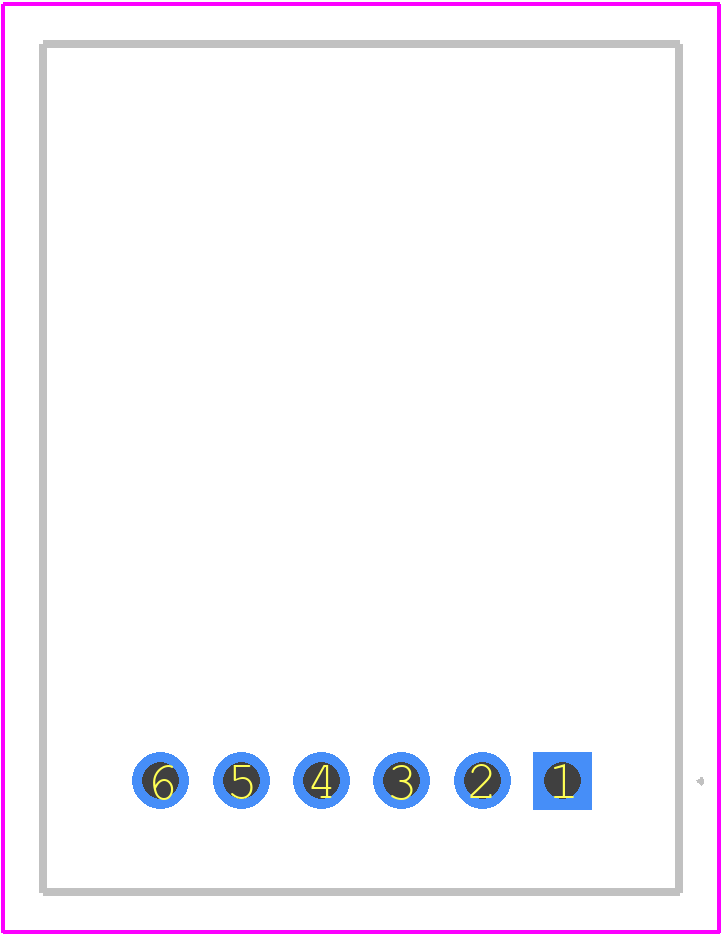

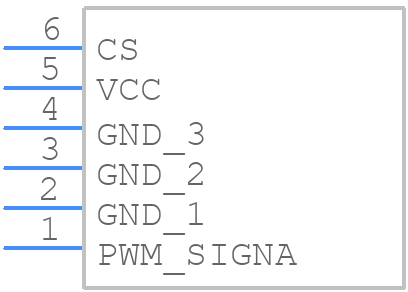

Use the download button to access the EMS22P50-D28-LT6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMS22,
or try a keyword search, such as Optical Position Encoders
