EN11-VSB1BQ20 - TT Electronics

Description: 11mm Rotary Encoder Side Adjust, with Switch, Plain Bushing EN11-VSB ,10mA/ 5Vdc ,-30°C to +85°C

Download EN11-VSB1BQ20 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EN11-VSB1BQ20 model

Email notifications will be applied after download.

Send part feedback

Symbol

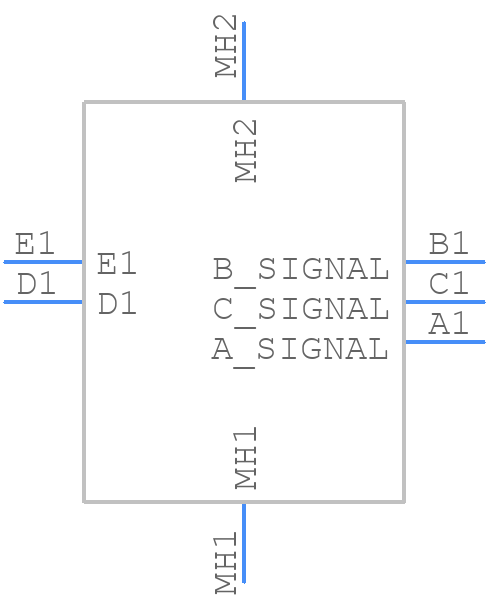

EN11-VSB1BQ20 - TT Electronics - PCB symbol

PCB Footprints

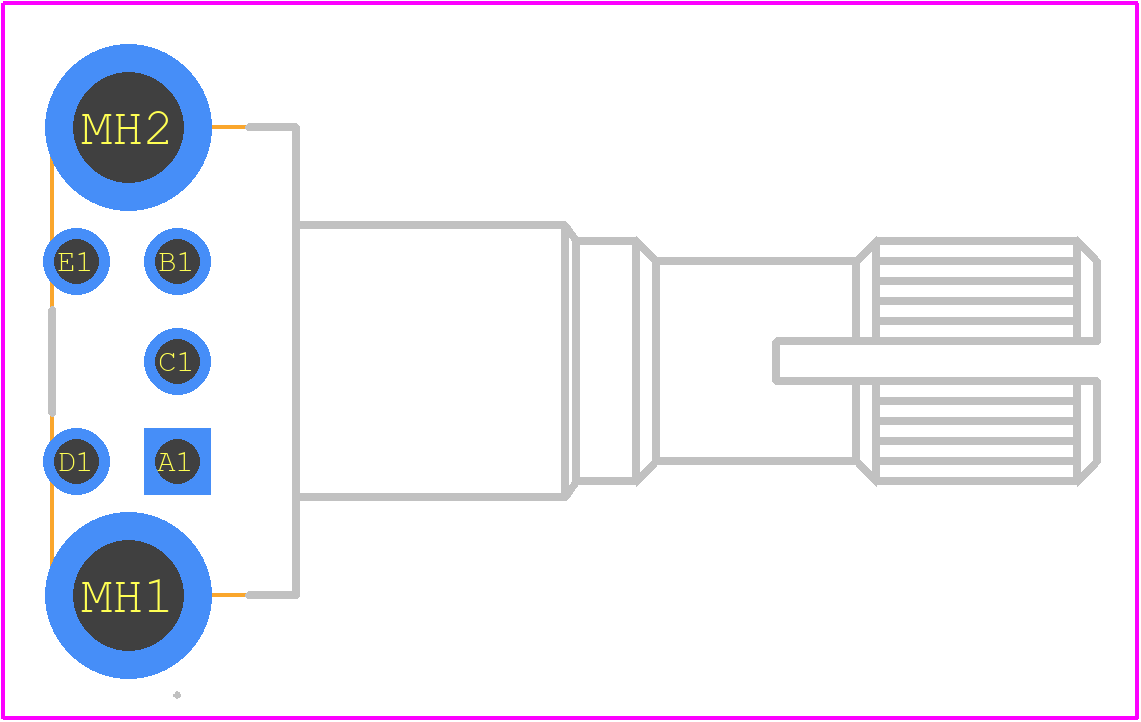

EN11-VSB1BQ20 - TT Electronics PCB footprint - Other - Other - EN11-VSB1BQ20-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for EN11-VSB1BQ20
Part Number EN11-VSB1BQ20
Manufacturer TT Electronics
Pin Count 7
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - EN11-VSB1BQ20-2
Released Date Jul 11, 2025
Last Modified Date Jul 15, 2025 11:09 PM UTC
Pinout / Pin List Click Here (Member Only)

EN11-VSB1BQ20 Details

Manufacturer Part Number:
EN11-VSB1BQ20
Manufacturer:
TT Electronics plc

Trust Checks

Expert Contribution

System Verified

Community Approved

EN11-VSB1BQ20 Overview

Use the download button to access the EN11-VSB1BQ20 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EN11-, or try a keyword search, such as Rotary Switches
