- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EN3P4FRAPCX
- Part Number EN3P4FRAPCX
- Manufacturer Switchcraft
- Pin Count 4
- Part Category Connector
- Package Category Other

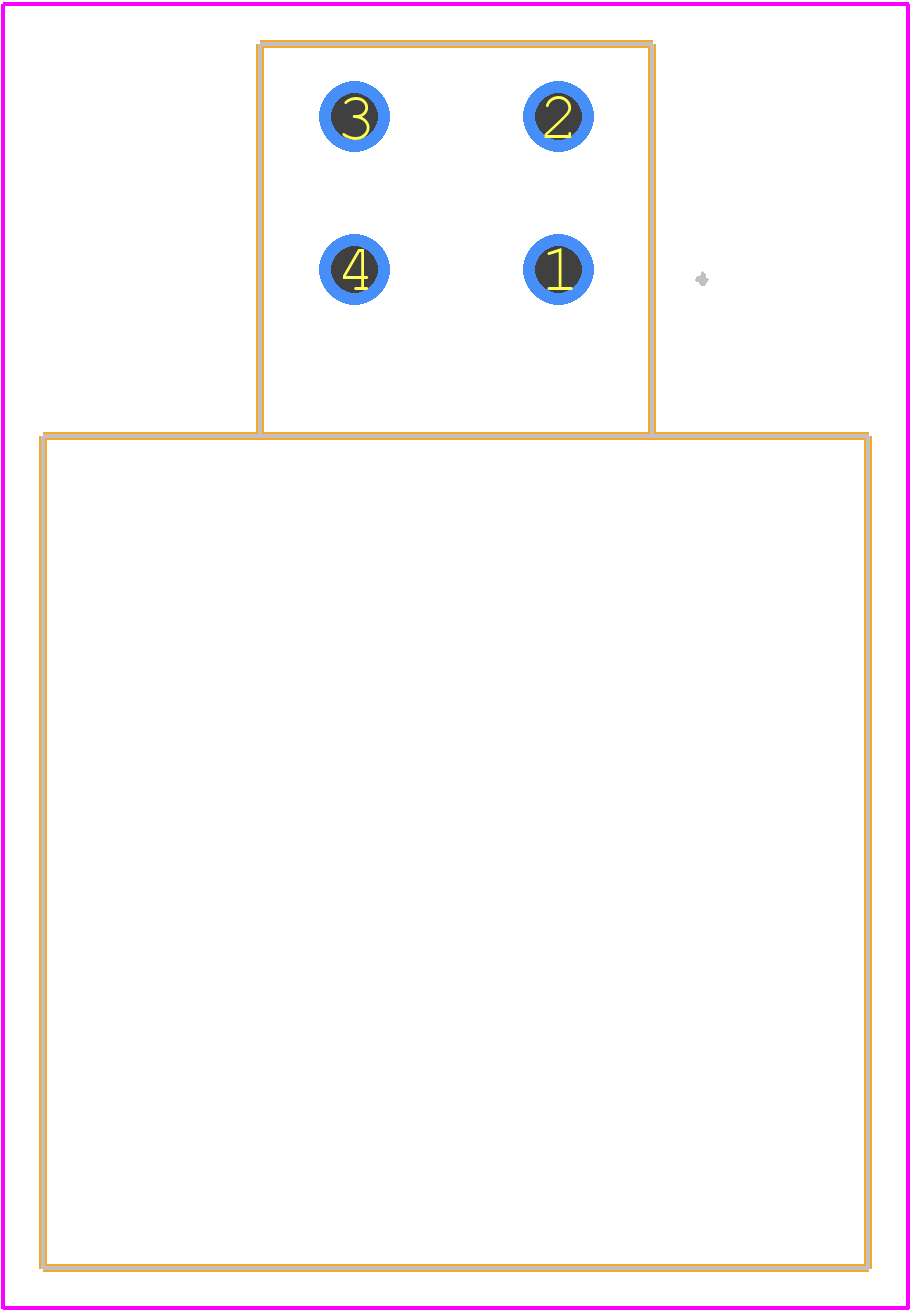

- Footprint Name Other - EN3P4FRAPCX-1
- Released Date Feb 1, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EN3P4FRAPCX Details
-
Manufacturer Part Number:
EN3P4FRAPCX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Switchcraft Conxall
-
Connector Type:
CIRCULAR CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
EN3P4FRAPCX Frequently Asked Questions (FAQs)
-
The operating temperature range of the EN3P4FRAPCX connector is -55°C to 125°C.
-
Yes, the EN3P4FRAPCX connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
-
The EN3P4FRAPCX connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
-
Yes, the EN3P4FRAPCX connector is part of the EN series and is compatible with other connectors in the same series, allowing for flexibility in design and assembly.
-
The typical lead time for delivery of the EN3P4FRAPCX connector varies depending on the supplier and quantity, but it is usually around 6-12 weeks.
Trust Checks
Expert Contribution
System Verified
Community Approved
EN3P4FRAPCX Overview
Use the download button to access the EN3P4FRAPCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EN3P4,
or try a keyword search, such as Other Circular Connectors
