EN3P4MRAPCX footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

PCB Footprints

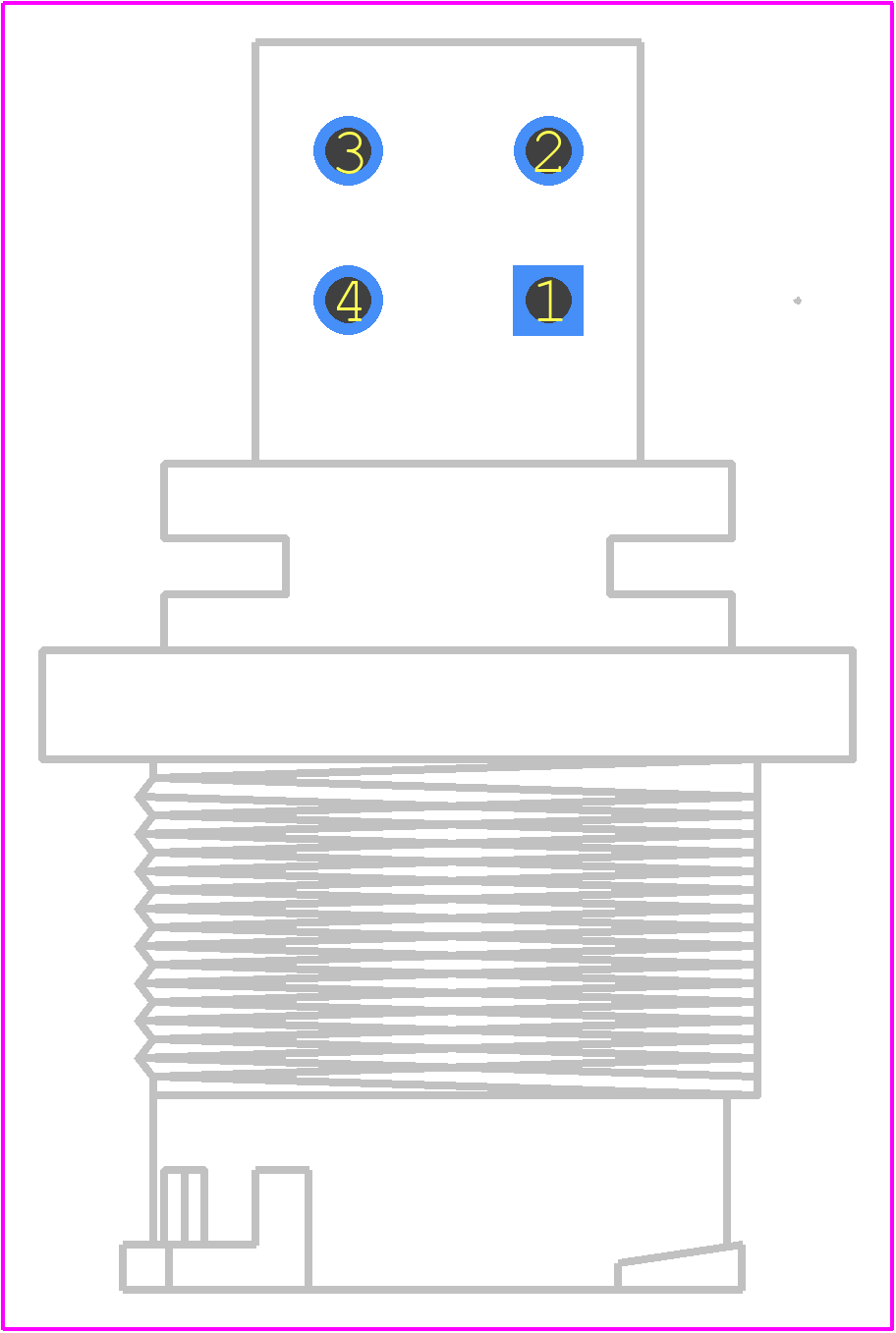

EN3P4MRAPCX - Switchcraft PCB footprint - Other - Other - EN3P4MRAPCX-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EN3P4MRAPCX
Part Number EN3P4MRAPCX
Manufacturer Switchcraft
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - EN3P4MRAPCX-1
Released Date Oct 7, 2023
Last Modified Date Oct 8, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

EN3P4MRAPCX Details

Manufacturer Part Number:
EN3P4MRAPCX
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Switchcraft Conxall
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

EN3P4MRAPCX Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, industrial, and transportation.
The operating temperature range is -55°C to 125°C (-133°F to 257°F), making it suitable for use in a wide range of environments.
Yes, the EN3P4MRAPCX is designed to be compatible with mil-spec connectors, making it suitable for use in military and aerospace applications.
The EN3P4MRAPCX has an IP67 rating, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

Community Provided

System Verified

Community Approved

EN3P4MRAPCX Overview

Use the download button to access the EN3P4MRAPCX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EN3P4, or try a keyword search, such as Other Circular Connectors
