EN3P6MRAPCBN footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

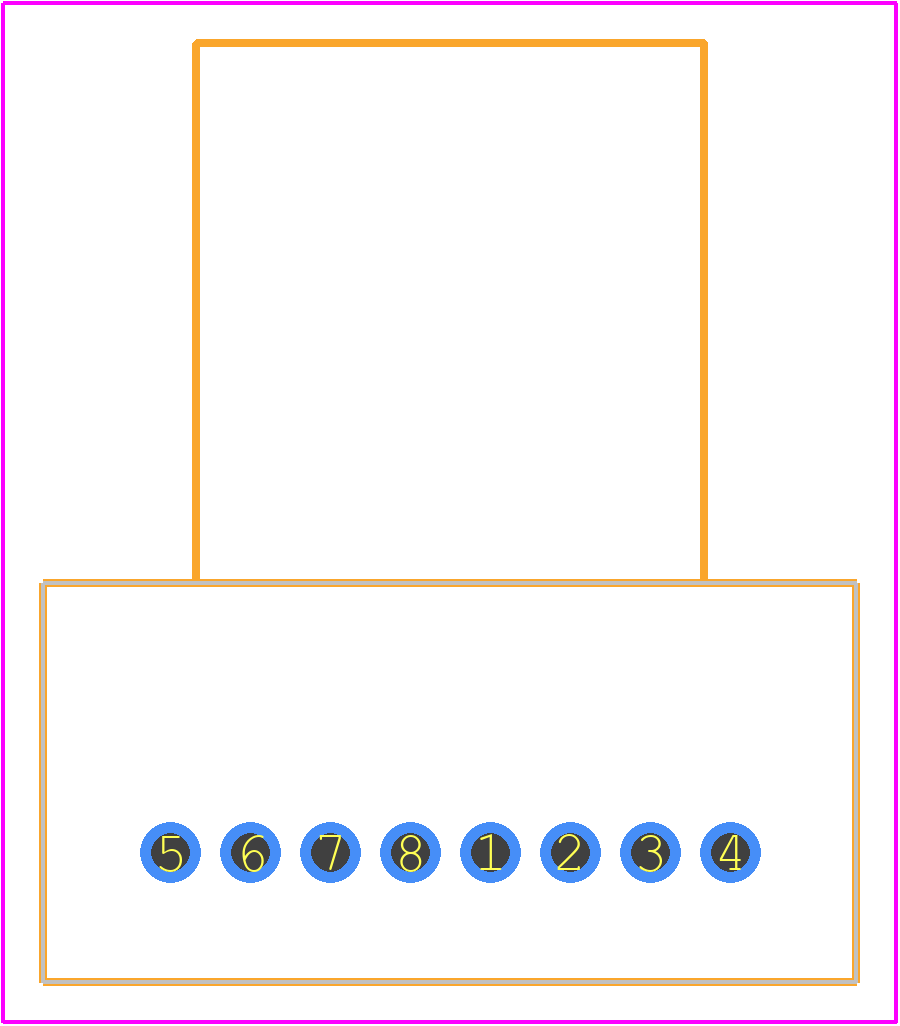

PCB Footprints

EN3P6MRAPCBN - Switchcraft PCB footprint - Other - Other - EN3P6MRAPCBN-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EN3P6MRAPCBN
Part Number EN3P6MRAPCBN
Manufacturer Switchcraft
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - EN3P6MRAPCBN-2
Released Date Mar 12, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EN3P6MRAPCBN Details

Manufacturer Part Number:
EN3P6MRAPCBN
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Switchcraft Conxall
YTEOL:
8
Backshell Type:
SOLID
Body Depth:
0.83 inch
Body Diameter:
0.81 inch
Connector Type:
CIRCULAR CONNECTOR
Contact Gender:
MALE
Coupling Type:
THREADED
Empty Shell:
NO
Environmental Characteristics:
CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter Feature:
NO
Insulator Material:
POLYETHYLENE
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-40 °C
Option:
WATERPROOF
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
6

EN3P6MRAPCBN Frequently Asked Questions (FAQs)

The operating temperature range of the EN3P6MRAPCBN connector is -55°C to 125°C.
Yes, the EN3P6MRAPCBN connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
The EN3P6MRAPCBN connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
Yes, the EN3P6MRAPCBN connector is designed to operate in harsh environments, including high humidity and salt spray, making it suitable for applications such as marine, aerospace, and industrial equipment.
The typical lead time for delivery of the EN3P6MRAPCBN connector varies depending on the supplier and quantity, but it is typically around 6-12 weeks.

Trust Checks

Expert Contribution

System Verified

Community Approved

EN3P6MRAPCBN Overview

Use the download button to access the EN3P6MRAPCBN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EN3P6, or try a keyword search, such as Other Circular Connectors
