EN5319QI - Intel

Description: Switching Voltage Regulators 1.5A LP Sync Buck DC-DC Converter

Download EN5319QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

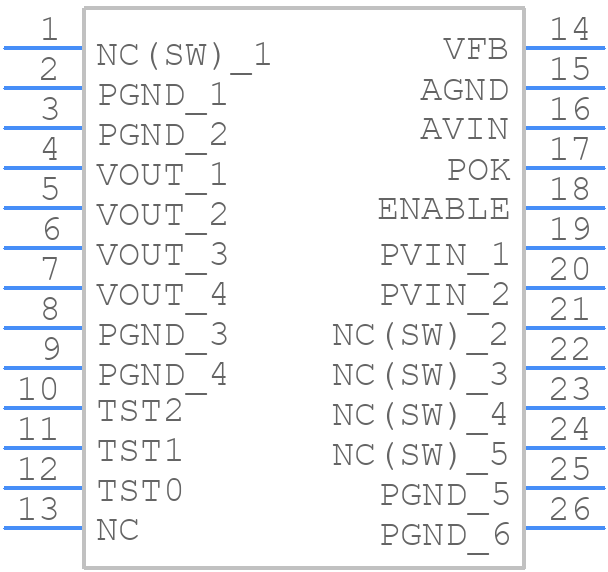

EN5319QI - Intel - PCB symbol
click to zoom
PCB Footprints
EN5319QI - Intel PCB footprint - Other - Other - EN5319QI-5
click to zoom
3D Models
EN5319QI - Intel - 3D model - Other - EN5319QI-5
click to zoom

EN5319QI Details

  • Manufacturer Part Number:

    EN5319QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO VIN-VDO V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XQCC-N24

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm
