EN5337QI - Intel

Description: Switching Voltage Regulators 3AMP BUCK CONVERTER DC-DC Conv, Int Ind

Download EN5337QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

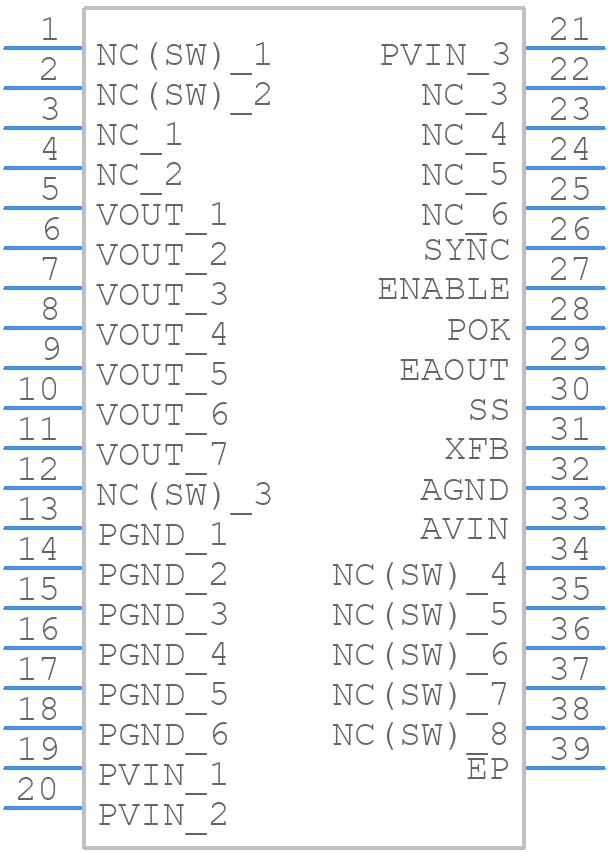

EN5337QI - Intel - PCB symbol
click to zoom
PCB Footprints
EN5337QI - Intel PCB footprint - Other - Other - 38-pin (4mm x 7mm x 1.85mm) QFN_2021
click to zoom
3D Models
EN5337QI - Intel - 3D model - Other - 38-pin (4mm x 7mm x 1.85mm) QFN_2021
click to zoom

EN5337QI Details

  • Manufacturer Part Number:

    EN5337QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-38

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE RANGE 0.6 TO 5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.375 V

  • JESD-30 Code:

    R-XQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC38,.16X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    5000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

EN5337QI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 50-ohm impedance-controlled trace for the RMII interface.
  • Implement proper thermal management by providing adequate airflow, using a heat sink if necessary, and ensuring the device is operated within the recommended temperature range (-40°C to 85°C).
  • The 1.2V supply should be decoupled with a 10uF capacitor, and the 2.5V supply should be decoupled with a 4.7uF capacitor. Ensure the power supplies are clean and stable, with minimal ripple and noise.
  • Use an oscilloscope to verify the RMII clock and data signals. Check the signal integrity, clock frequency, and data transmission rates. Ensure the RMII interface is properly terminated and the signal traces are properly routed.
  • Implement EMI shielding, use ESD protection devices, and ensure the PCB design follows EMI and ESD best practices. Use a common-mode choke and EMI filters as needed.
