EN6347QI - Intel

Description: Switching Voltage Regulators 4A High Eff Buck Con Integrated Inductor

Download EN6347QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

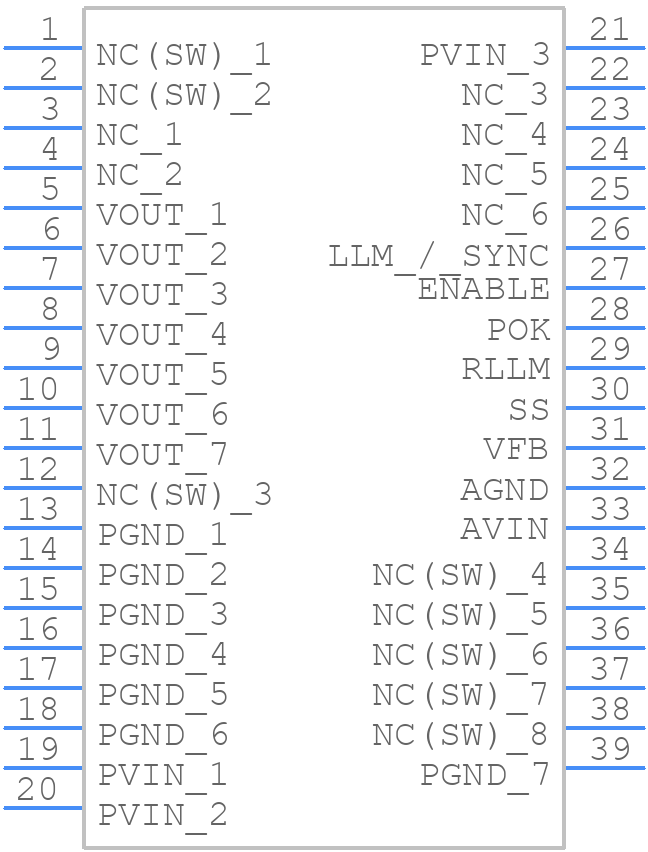

EN6347QI - Intel PCB footprint - Other - Other - EN6347QI-1
click to zoom
3D Models
EN6347QI - Intel  - 3D model - Other - EN6347QI-1
click to zoom

EN6347QI Details

  • Manufacturer Part Number:

    EN6347QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.75 TO 6.24V; ALSO REQUIRE PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.6 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    6.24 V

  • Output Voltage-Min:

    0.75 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC38,.16X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

EN6347QI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended for optimal thermal performance. Ensure that the thermal pad is connected to a solid ground plane to dissipate heat efficiently.
  • To ensure reliable operation across the entire temperature range, follow the recommended operating conditions, and consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
  • Power sequencing should follow the recommended power-up sequence: VCC, then VCCIO, and finally VREF. Ensure a slow voltage ramp-up (typically 1-2 ms) to prevent damage to the device.
  • Implement ESD protection using TVS diodes or ESD arrays on the I/O lines. For latch-up prevention, ensure that the device is operated within the recommended operating conditions, and consider using a latch-up protection circuit if necessary.
  • Follow best practices for signal integrity by using controlled impedance routing, minimizing signal lengths, and avoiding signal crossing. Use a signal integrity analysis tool to optimize PCB routing.
