ENA1J-B28-L00064L - Bourns

Description: Bourns 64 Pulse Optical Encoder with a 6.35 mm Round Shaft, Bracket Mount

Download ENA1J-B28-L00064L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

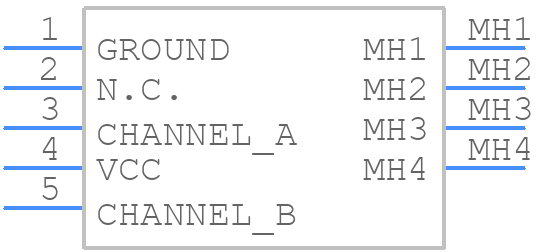

ENA1J-B28-L00064L - Bourns - PCB symbol
click to zoom
PCB Footprints

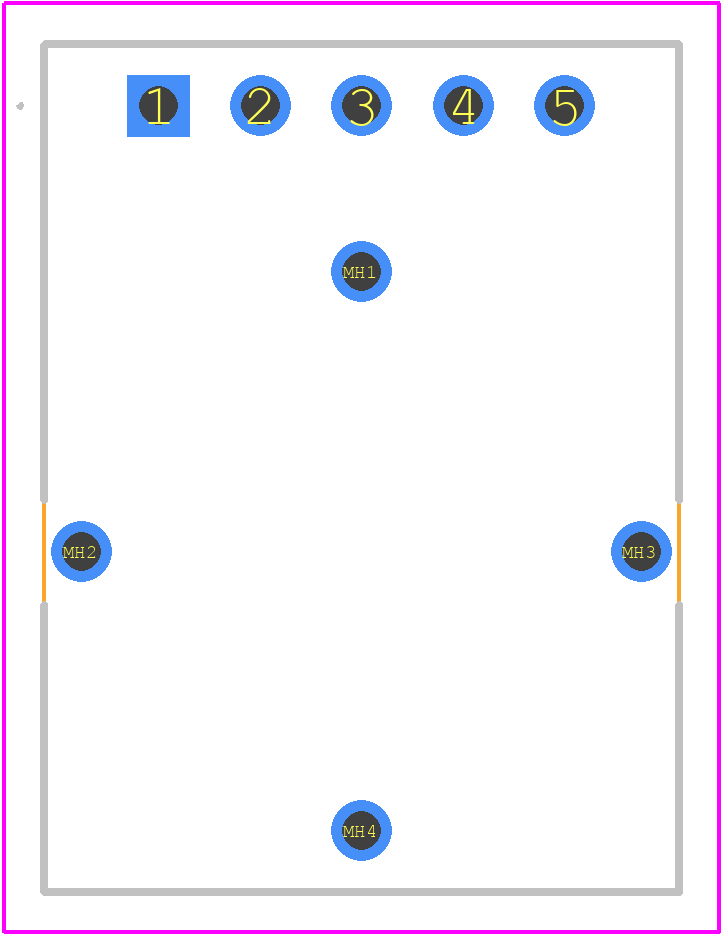

ENA1J-B28-L00064L - Bourns PCB footprint - Other - Other - ENA1J-B28-L00064L-3
click to zoom
3D Models
ENA1J-B28-L00064L - Bourns - 3D model - Other - ENA1J-B28-L00064L-3
click to zoom

ENA1J-B28-L00064L Details

  • Manufacturer Part Number:

    ENA1J-B28-L00064L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Bourns Inc

  • Configuration:

    SINGLE, 2 CHANNELS

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    INCREMENTAL ROTARY ENCODER

  • Supply Voltage-Max:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

ENA1J-B28-L00064L Frequently Asked Questions (FAQs)

  • A good PCB layout for the ENA1J-B28-L00064L would involve keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce parasitic inductance and capacitance.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
  • The maximum operating temperature range for the ENA1J-B28-L00064L is -40°C to 125°C, as specified in the datasheet. Operating the device outside of this range may affect its performance and reliability.
  • Yes, the ENA1J-B28-L00064L is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibrations.
  • To troubleshoot issues with the ENA1J-B28-L00064L, start by checking the power supply voltage, input and output signals, and PCB layout. Use an oscilloscope to measure the signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ENA1J-B28-L00064L Overview

Use the download button to access the ENA1J-B28-L00064L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ENA1J, or try a keyword search, such as Optical Position Encoders
