ENA1P-B28-L00128L - Bourns

Description: Optical Encoder Rotary Incremental Plain 0.011N.m Straight Digital Square Wave Bracket Mount PC Pin 128CPR

Download ENA1P-B28-L00128L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

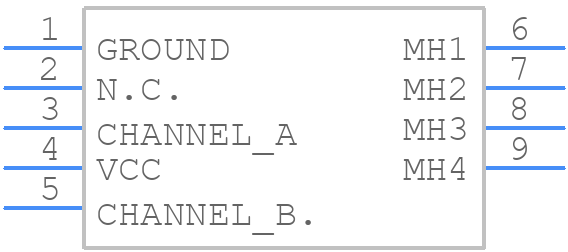

Symbol
ENA1P-B28-L00128L - Bourns - PCB symbol
click to zoom

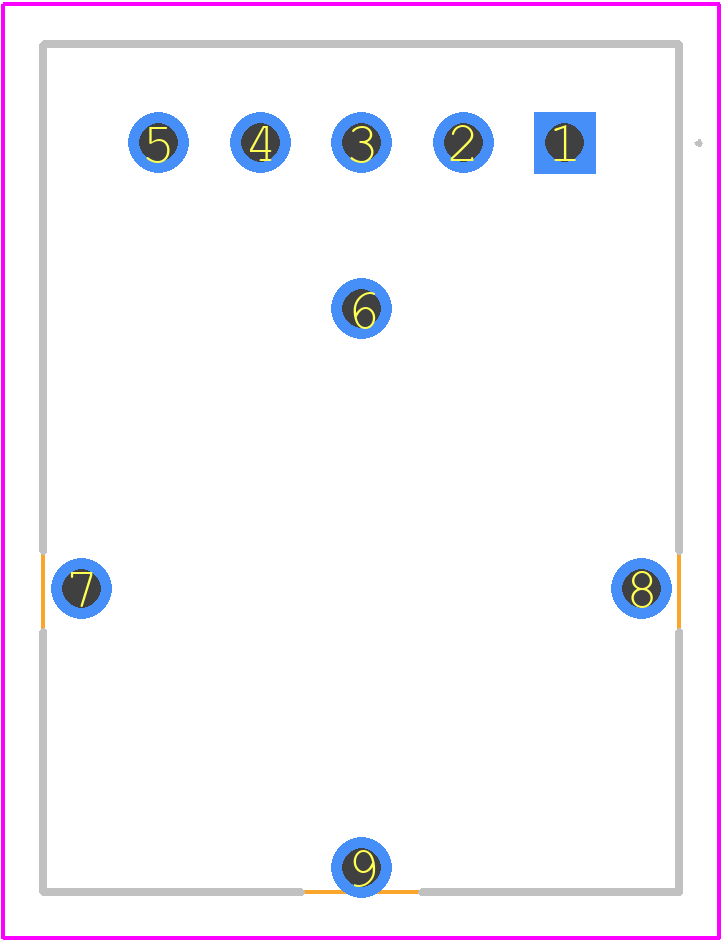

PCB Footprints
ENA1P-B28-L00128L - Bourns PCB footprint - Other - Other - ENA1P-B28-L00128L-2
click to zoom
3D Models
ENA1P-B28-L00128L - Bourns - 3D model - Other - ENA1P-B28-L00128L-2
click to zoom

ENA1P-B28-L00128L Details

  • Manufacturer Part Number:

    ENA1P-B28-L00128L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Bourns Inc

  • Configuration:

    SINGLE, 2 CHANNELS

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    INCREMENTAL ROTARY ENCODER

  • Supply Voltage-Max:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN
