Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the pads. Ensure the component is properly aligned and the solder flows smoothly to avoid cold joints or bridging.
The ENT1D-D20-L00256L can operate safely within a temperature range of -40°C to +125°C, but it's recommended to derate the current rating above 85°C to ensure reliability.
Yes, the ENT1D-D20-L00256L is designed to withstand vibrations up to 10G, but it's recommended to secure the component properly to the PCB using a suitable adhesive or mechanical fastening to prevent damage.
Start by checking the input and output voltages, and ensure the component is properly soldered and aligned. Use an oscilloscope to check for noise or oscillations, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ENT1D-D20-L00256L Overview

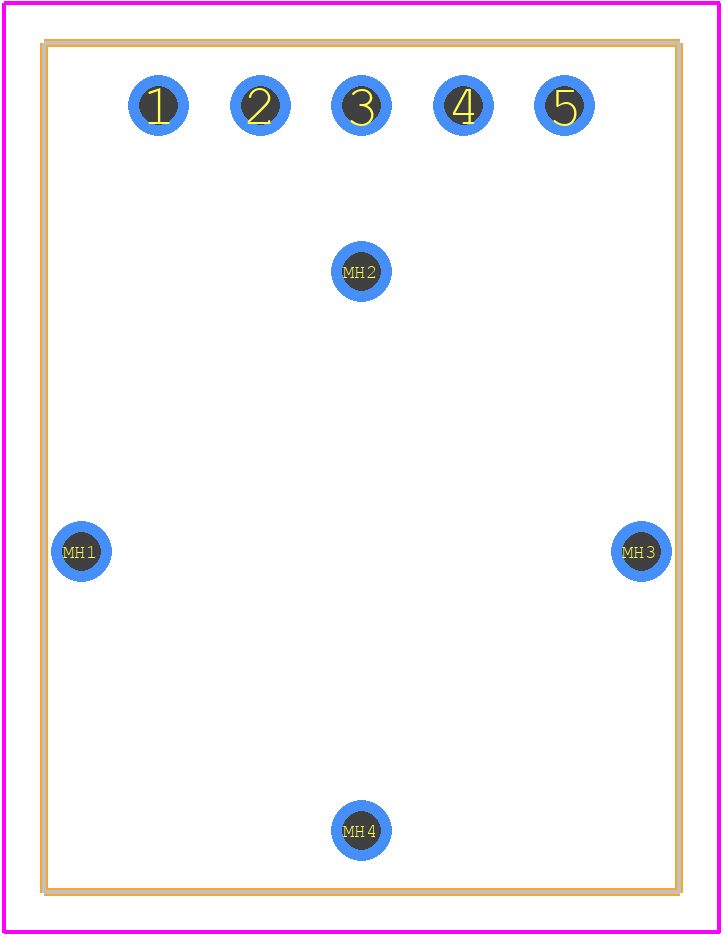

Use the download button to access the ENT1D-D20-L00256L schematic symbol, PCB footprint, and 3D model.
