ENT1D-D28-L00100L - Bourns

Description: Bourns 5V dc 100 Pulse Optical Encoder with a 7.14 mm Plain Shaft, Bracket Mount, axial PC Pin

Download ENT1D-D28-L00100L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

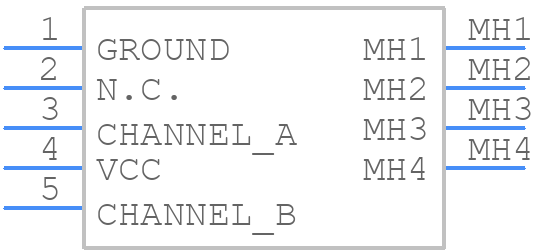

ENT1D-D28-L00100L - Bourns - PCB symbol
click to zoom
PCB Footprints

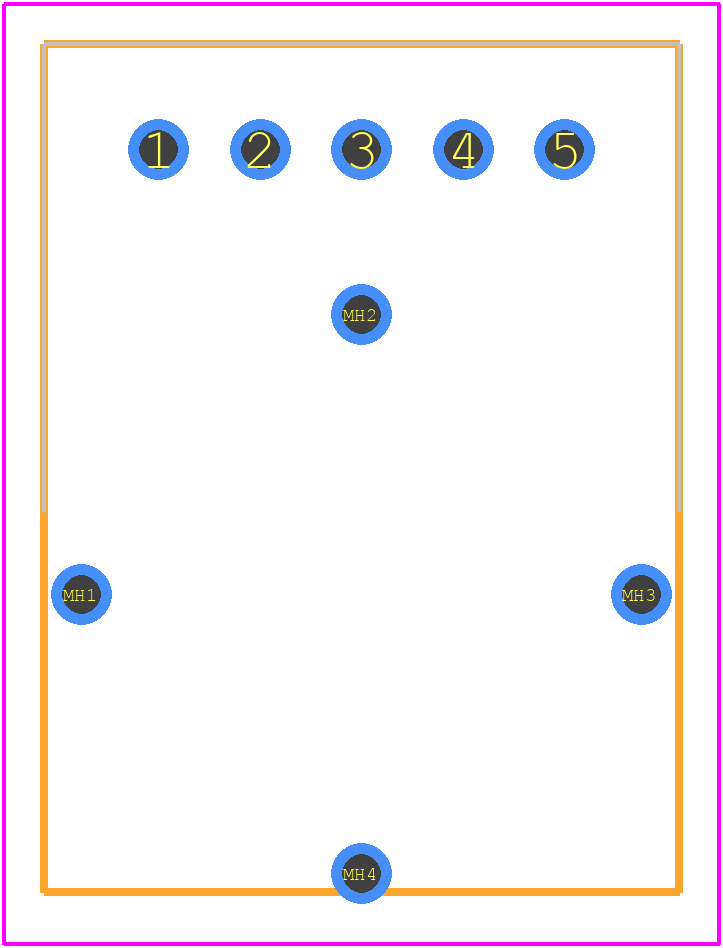

ENT1D-D28-L00100L - Bourns PCB footprint - Other - Other - ENT1D-D28-L00100L-3
click to zoom
3D Models
ENT1D-D28-L00100L - Bourns - 3D model - Other - ENT1D-D28-L00100L-3
click to zoom

ENT1D-D28-L00100L Details

  • Manufacturer Part Number:

    ENT1D-D28-L00100L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Bourns Inc

  • Configuration:

    SINGLE, 2 CHANNELS

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    INCREMENTAL ROTARY ENCODER

  • Supply Voltage-Max:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

ENT1D-D28-L00100L Frequently Asked Questions (FAQs)

  • The operating temperature range of the ENT1D-D28-L00100L is -40°C to 125°C.
  • Yes, the ENT1D-D28-L00100L is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The recommended storage temperature range for the ENT1D-D28-L00100L is -40°C to 125°C.
  • Yes, the ENT1D-D28-L00100L is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial, automotive, and aerospace.
  • The typical lead time for the ENT1D-D28-L00100L varies depending on the supplier and the quantity ordered, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ENT1D-D28-L00100L Overview

Use the download button to access the ENT1D-D28-L00100L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ENT1D, or try a keyword search, such as Optical Position Encoders
