ENW89835A1KF - Panasonic

Description: PANASONIC ELECTRONIC COMPONENTS - ENW-89835A1KF - RF MOD, TXRX, BLUETOOTH, PAN1721-TI

Download ENW89835A1KF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

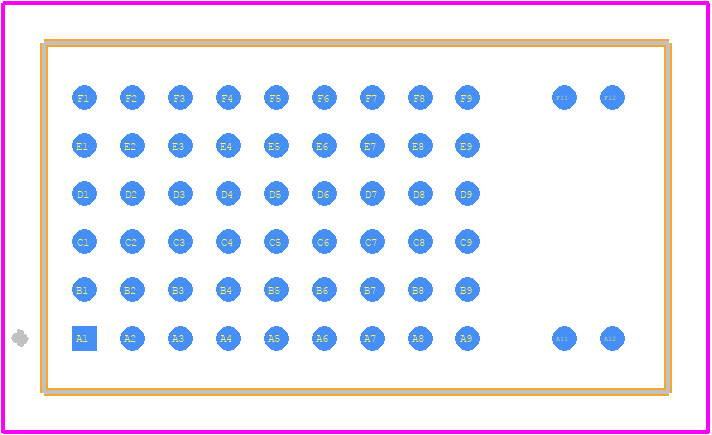

ENW89835A1KF - Panasonic PCB footprint - Other - Other - ENW-89835A1KF-2
click to zoom
3D Models
ENW89835A1KF - Panasonic  - 3D model - Other - ENW-89835A1KF-2
click to zoom

ENW89835A1KF Details

  • Manufacturer Part Number:

    ENW89835A1KF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-58

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-X58

  • Length:

    15.6 mm

  • Number of Terminals:

    58

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    50

  • Width:

    8.7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

ENW89835A1KF Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
  • The ENW89835A1KF has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to implement proper thermal management. This can be achieved by using thermal vias, heat sinks, or thermal pads, and ensuring good airflow around the component.
  • Panasonic recommends following the JEDEC J-STD-020 standard for soldering conditions. The recommended soldering temperature is between 240°C to 260°C, with a maximum soldering time of 5 seconds. It's also essential to use a soldering iron with a temperature control and to avoid applying excessive force or pressure during the soldering process.
  • To troubleshoot issues related to the ENW89835A1KF, start by verifying the component's pinout and connections. Check for any signs of physical damage, overheating, or soldering defects. Use oscilloscopes or logic analyzers to monitor signal waveforms and identify any anomalies. Consult Panasonic's application notes and technical support resources for guidance on specific issues.
  • The ENW89835A1KF is a high-frequency component, and proper EMI shielding and filtering are crucial to ensure reliable operation. Panasonic recommends using EMI shielding materials, such as copper foil or metal cans, to enclose the component. Additionally, implementing filtering components, like capacitors or inductors, can help reduce EMI emissions and improve signal integrity.
